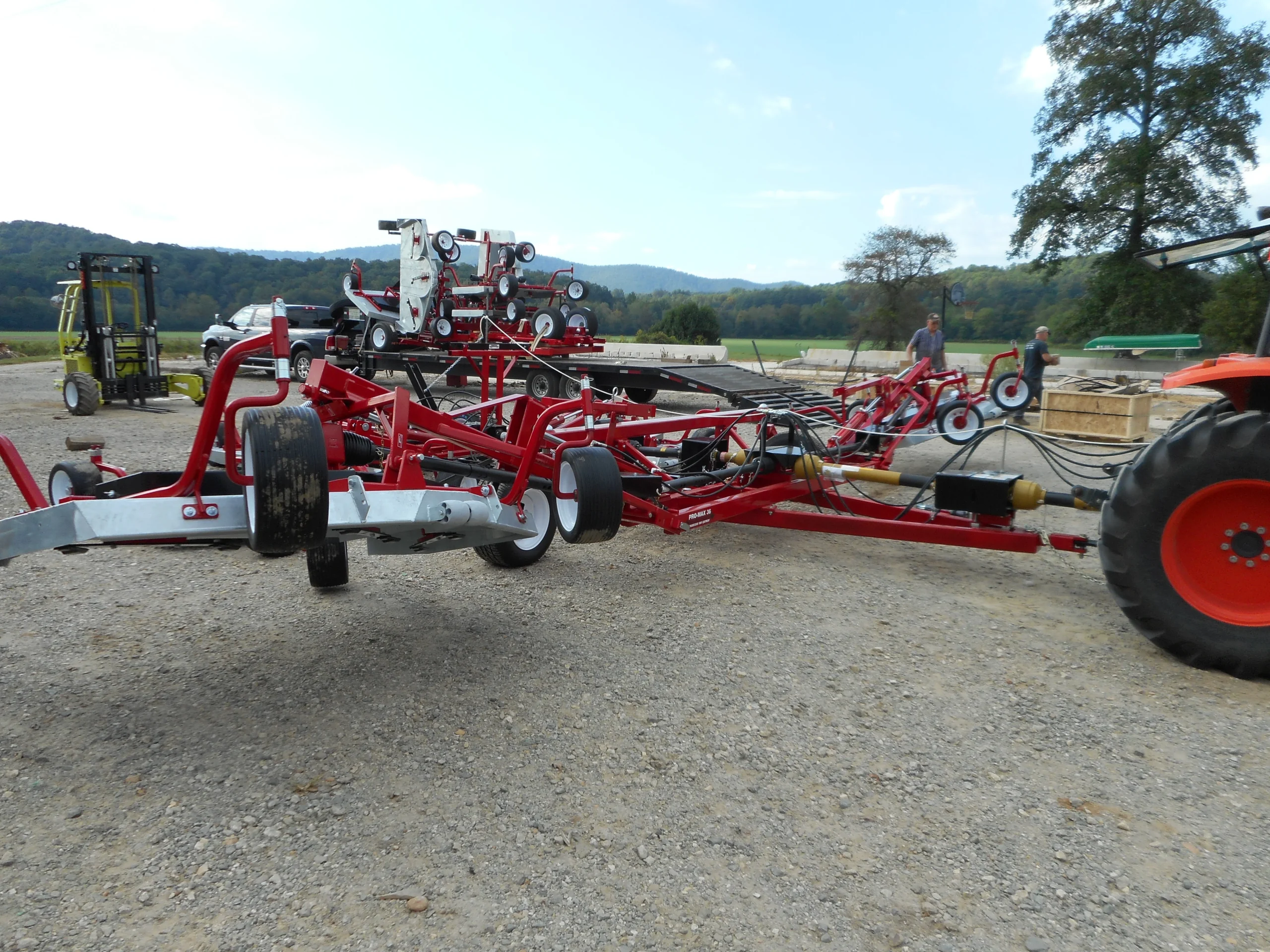

ProMax-36 Image 09
ProMax-36 Image 10

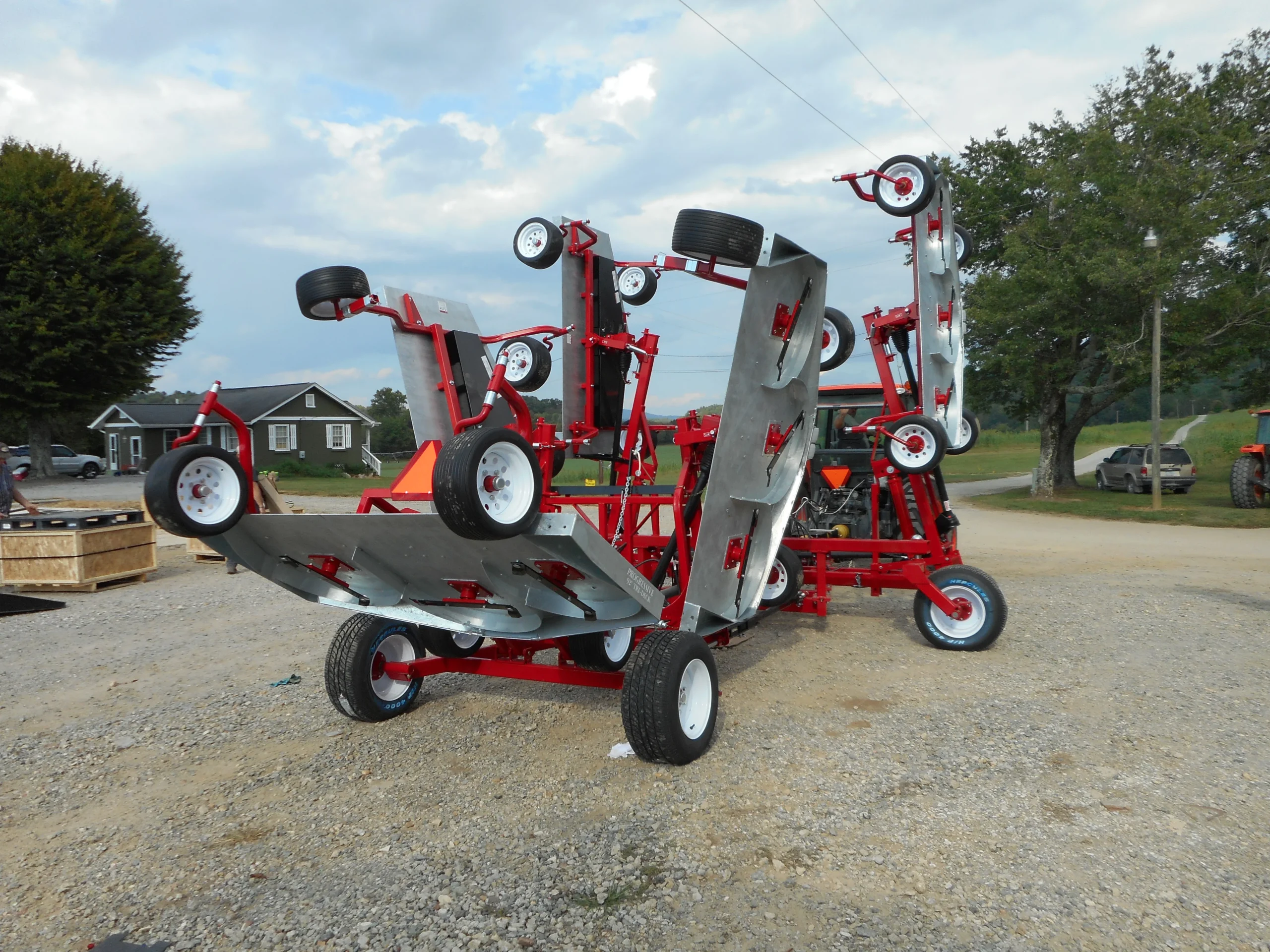

ProMax-36 Image 11

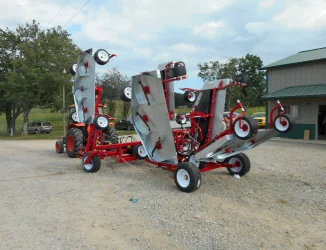

ProMax-36 Image 12

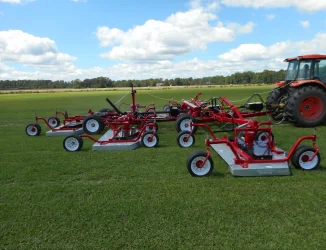

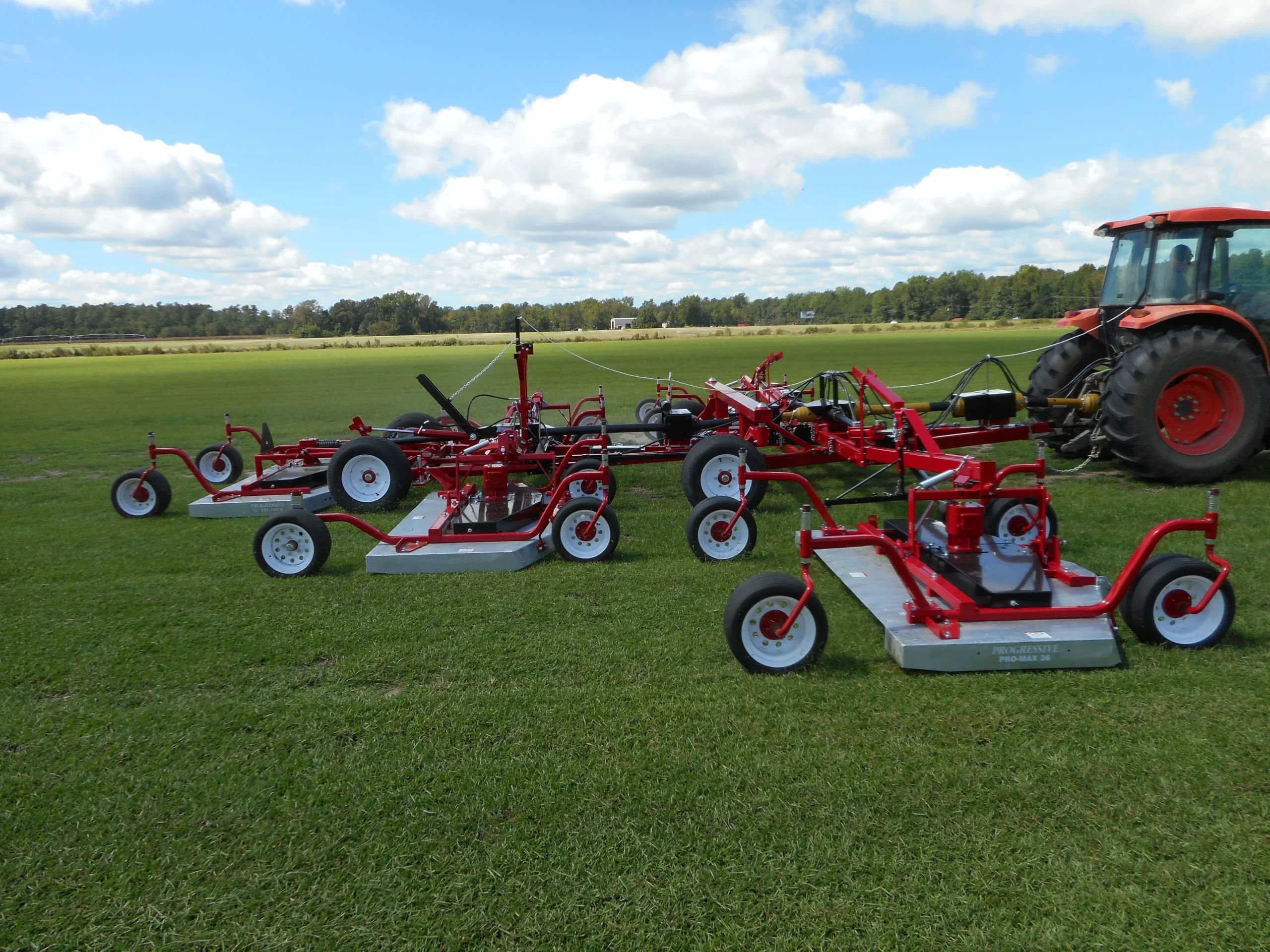

ProMax-36 Image 13

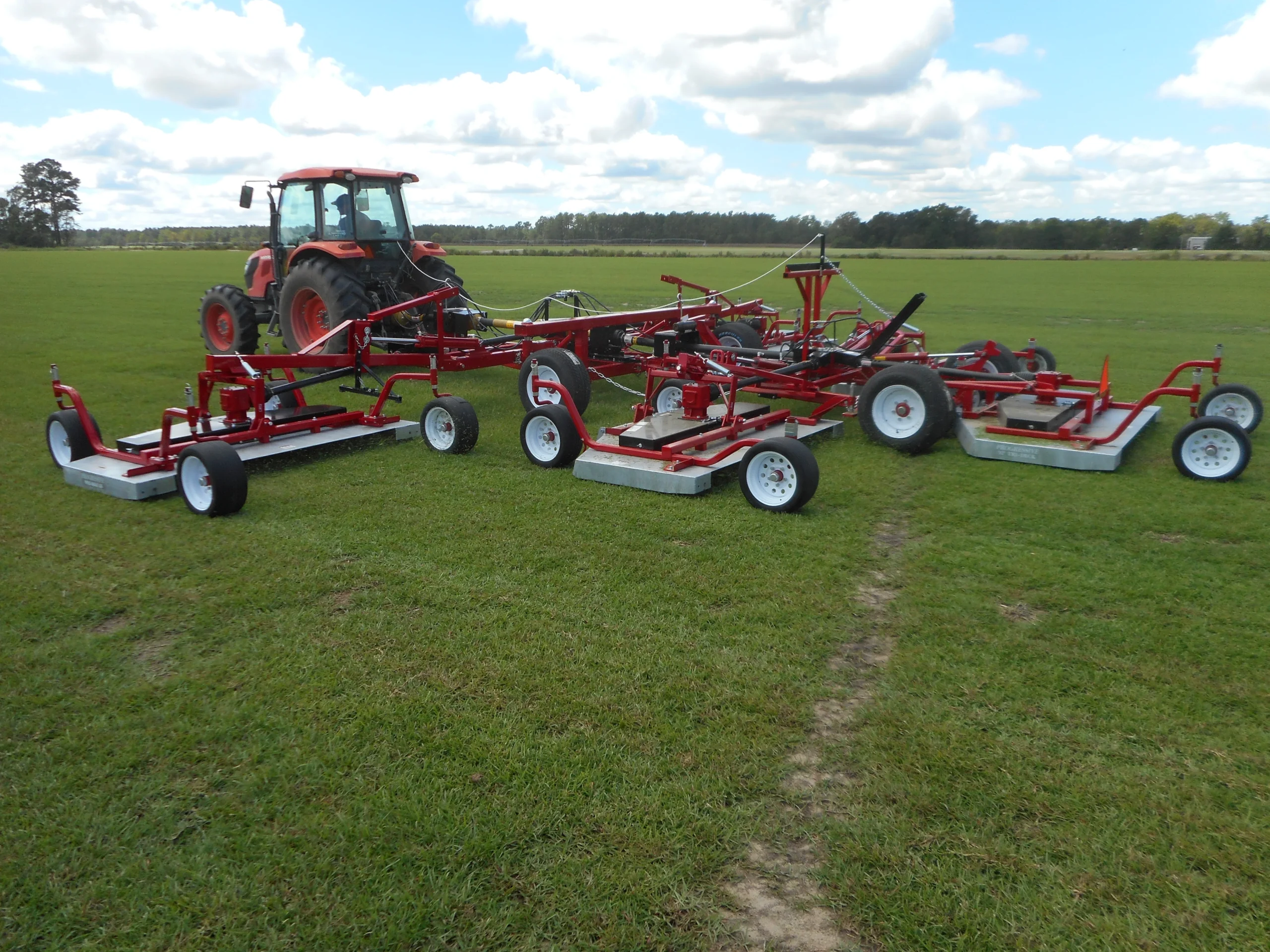

ProMax-36 Image 01

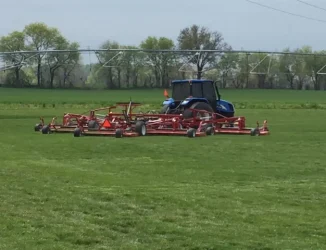

ProMax-36 Image 02

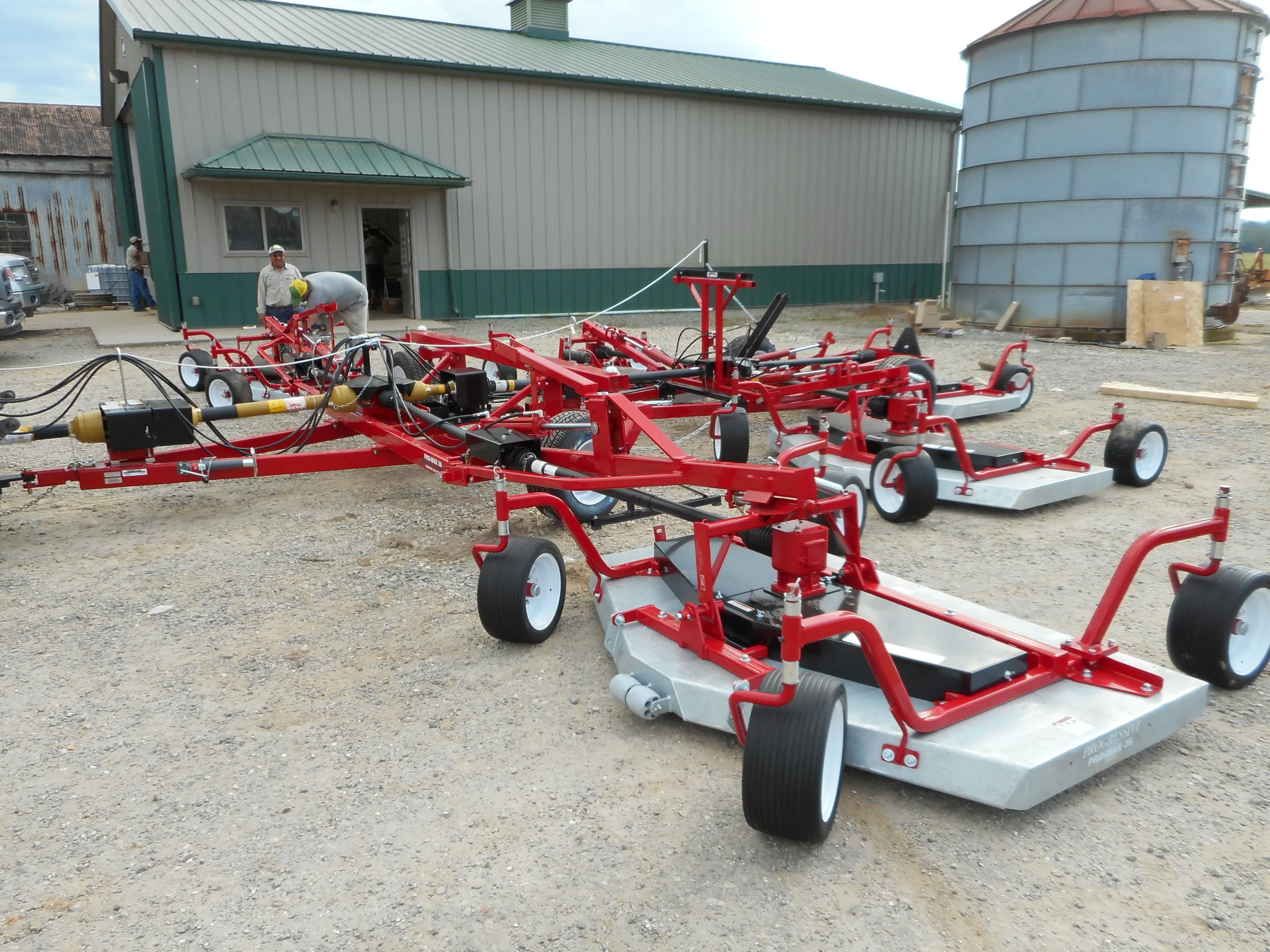

ProMax-36 Image 03

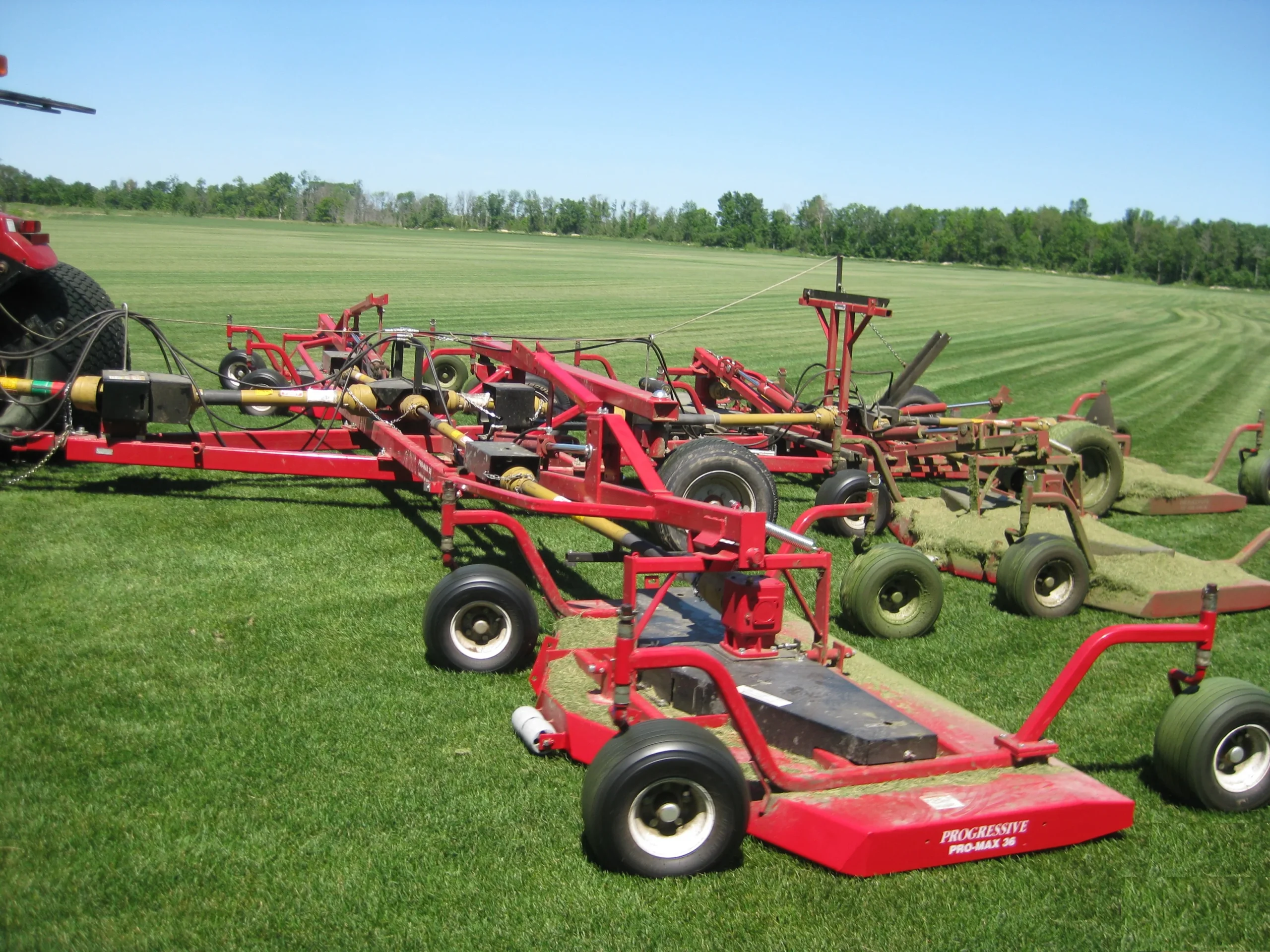

ProMax-36 Image 04

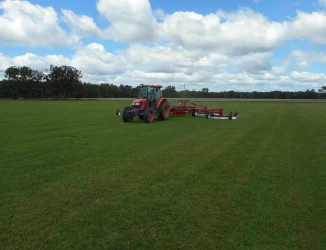

ProMax-36 Image 05

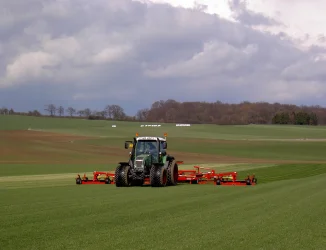

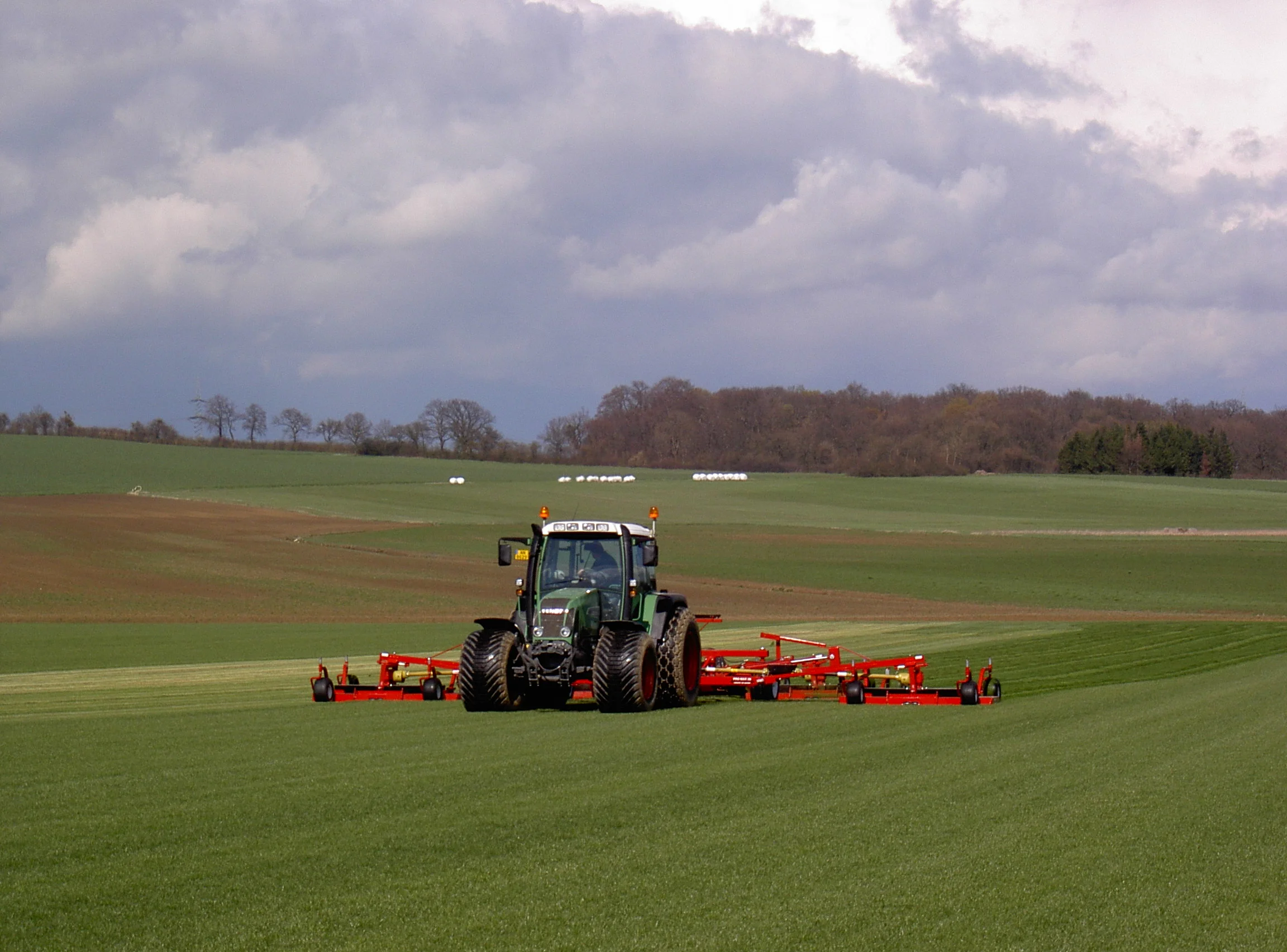

ProMax-36 Image 06

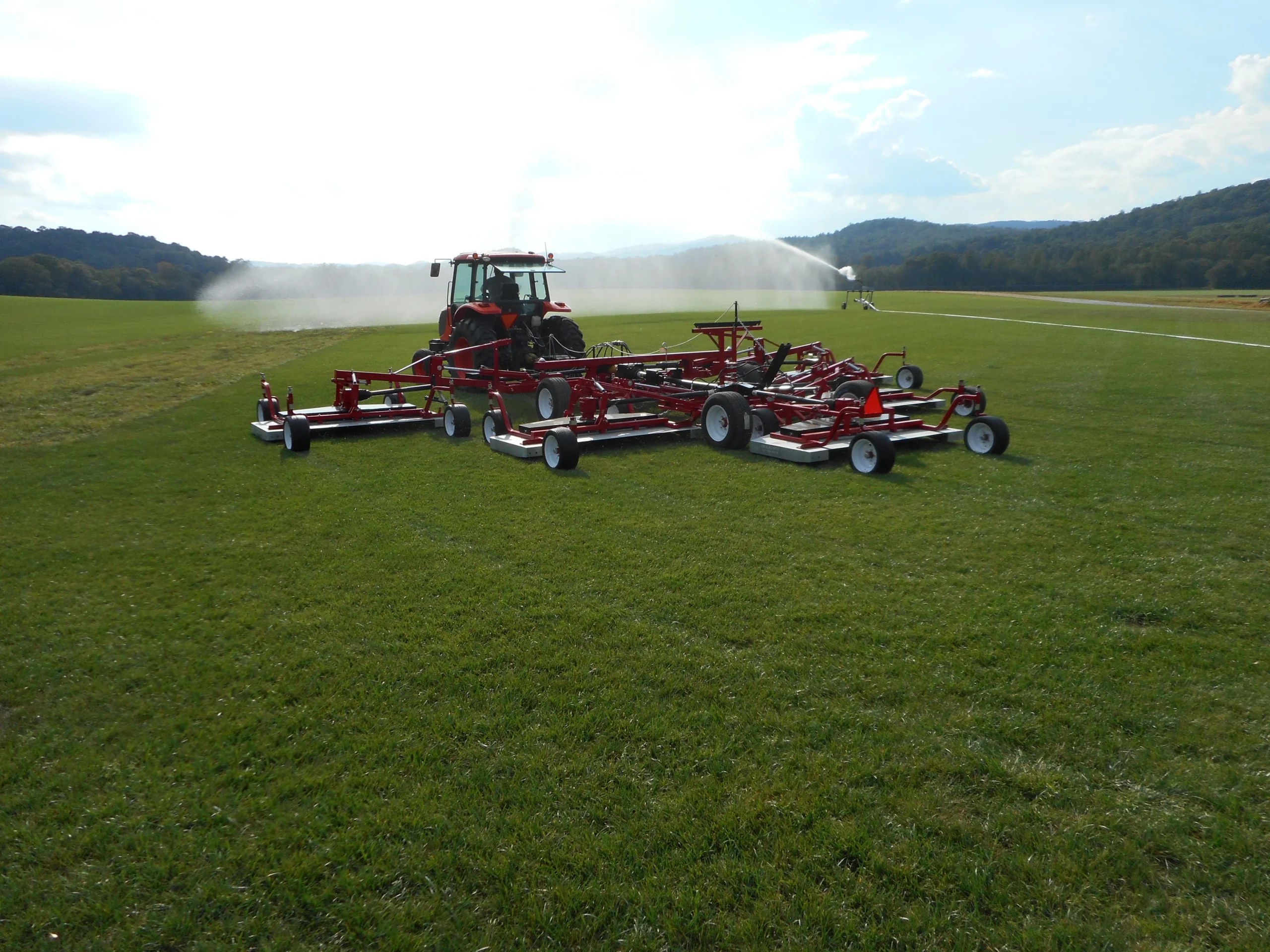

ProMax-36 Image 07

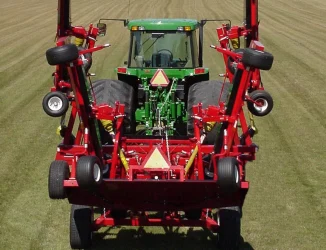

ProMax-36 Image 08

Overview

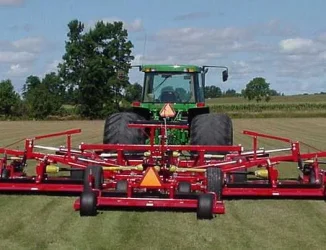

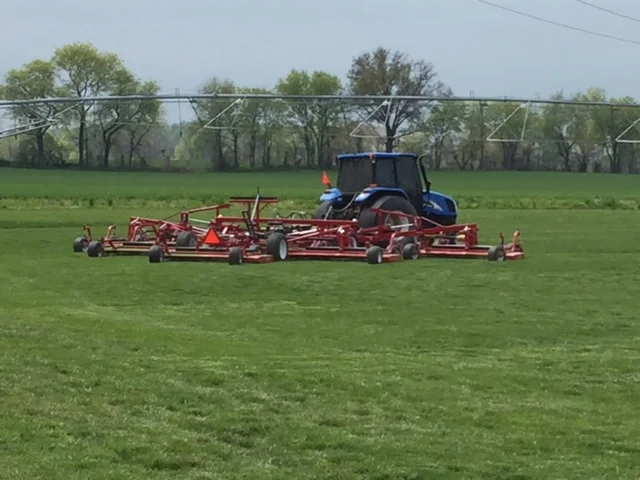

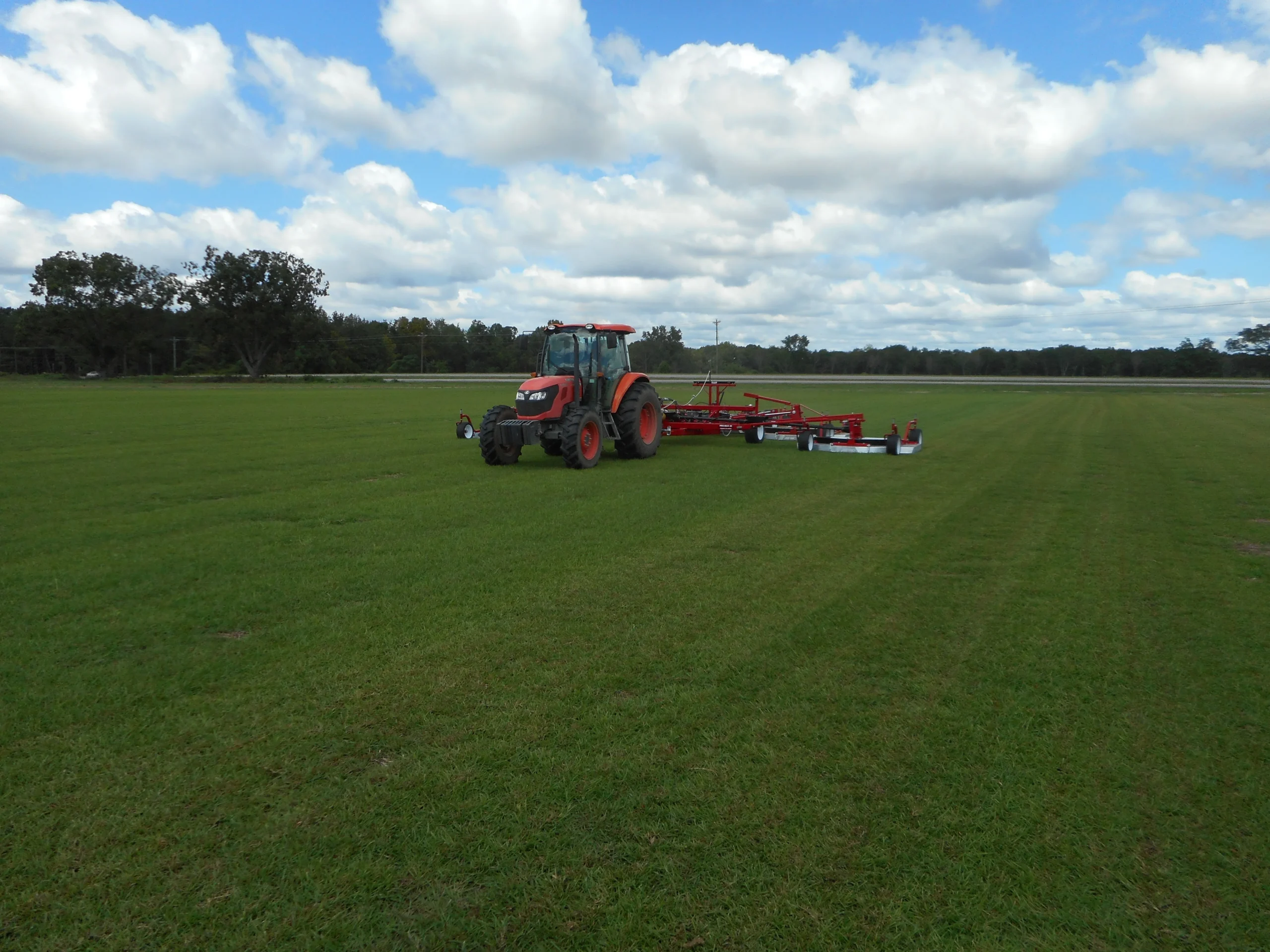

The PM-36 when paired with the Progressive TD92 rotary finishing mower, creates the Pro-Max 36 mowing system. Towed by a ~100 H.P. tractor, the Pro-Max 36 mowing system delivers a 36 foot wide cut swath and can mow up to 33 acres per hour. The Pro-Max 36, although a large machine has a light footprint making it ideal in wet conditions. The PM-36 and the TD92 share many of the same components which helps keeps long term ownership costs low.

AVAILABLE IN PAINTED OR GALVANIZED DECK SHELL FINISH

Specifications

Part Number

629236 (Painted) 629236G (Galvanized) for North America / 629236C (Painted) 629236GC (Galvanized) for Worldwide
Recommended PTO H.P.

80 to 100 (when mated with a TD92)
Mowing Capacity * (Assumes no overlap or turning)

2 mph 8.8 acres per hour *
4 mph 17.5 acres per hour *
6 mph 26.0 acres per hour *
7.5 mph 32.8 acres per hour *
Cut Height Range

3/4″ to 5″ in 3/8″ steps
Cutting Width

36′ (when mated with a TD92)
Turning Radius

Zero

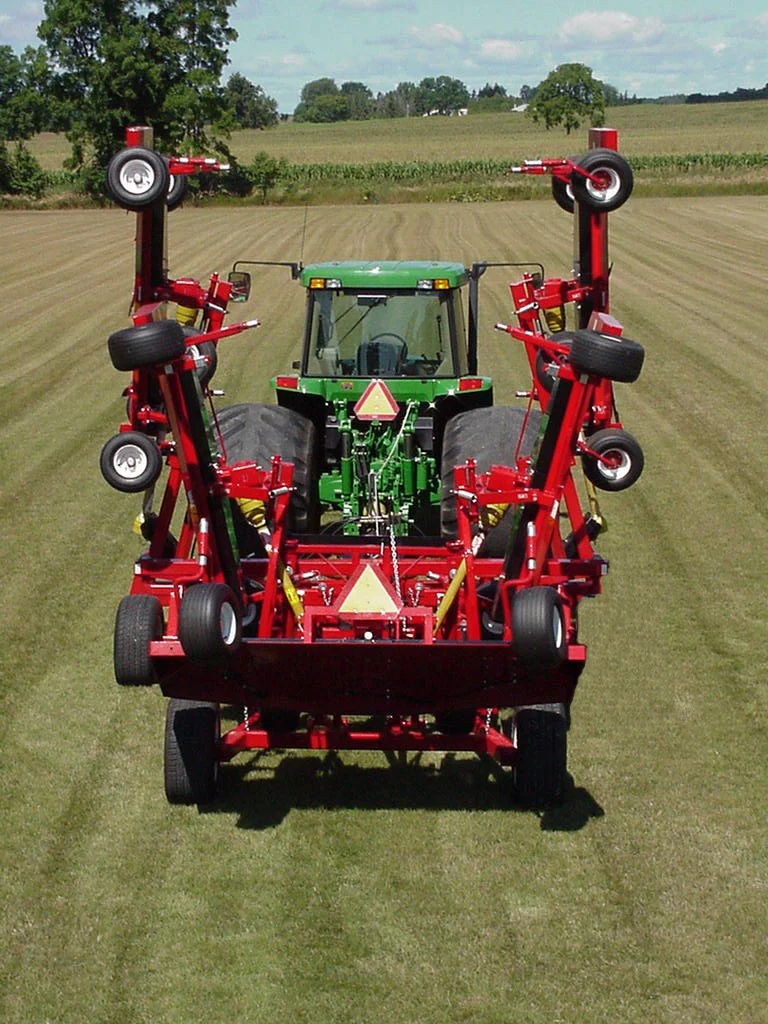

Transport Width

13′ (when mated with a TD92)
Transport Tires

P275 / 60R 15 Automotive Radials
Transport Height

13′ (when mated with a TD92)
Weight

8700 lbs
Transport Length

29′ 8″ (when mated with a TD92)
Std. Equipment
  • Must be used in conjunction with a Progressive TD92, 22’ finishing mower
  • Pro-Max 36 uses two – 92” decks with the same parts and specifications as those used on the TD92 for parts commonality.
  • Total of 5 decks in use when unit connected to a Progressive TD92.
  • Heavy-duty construction, rear open discharge, easy cutting height adjustment.
  • Heavy-duty gauge wheel tires with tapered roller bearings.
    Galvanized, bolt-on deck skins, provides ease of deck replacement if necessary
  • Maintenance free blade spindles.
  • Transport tires: P275/60 SR15
  • High lift blades for superior cut. Tip speed 18,547 FPM.
  • Double anti-scalp roller mounted at the front center of the two wing decks.
Opt. Equipment

A Pro-Max Mowing System requires two double acting hydraulic circuits, one with float capability

  • 523500 Rear Anti-Scalp Kit (4 rollers, with bolt-on brackets, requires installation)
  • 522609 High Lift Fixed Blade Kit (six pieces)
  • 522614 Low Lift Fixed Blade Kit (six pieces per kit)
  • 526778 PM36 PRO EZ II Change Blade bar kit (6 Pieces per kit)
  • 526594 PRO EZ II Blade Tips Bulk Pack (50 Pieces – W/O hardware) HIGH LIFT
  • 526648 PRO EZ II Blade Tips Bulk Pack (50 Pieces – W/O hardware) LOW LIFT
  • 526866 PRO-EZ II Blade Bolt Kit – 25 PCS W/ hardware
  • 629332 Progressive brand solid deck tire in lieu of pneumatic tires (8 pieces)
DISCLAIMER

Under our policy of continuous improvement, we reserve the right to change specifications and designs without prior notice. The illustrations shown do not necessarily represent the standard version of product offered by Progressive Turf Equipment Inc.
