SDR-90

Harlo Rough Terrain Forklift
CUTTING WIDTH
90"
CUT HEIGHT RANGE
1/2" to 4"
RECOMMENDED PTO H.P.
35
SDR-90

Overview

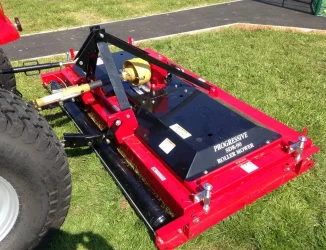

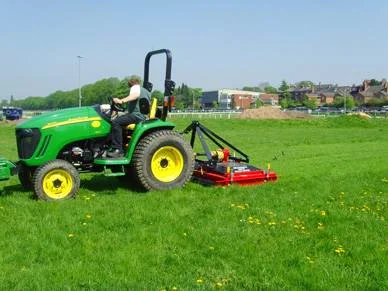

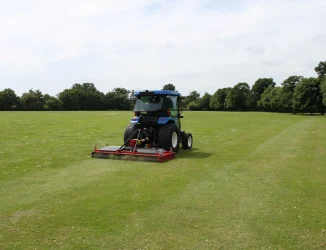

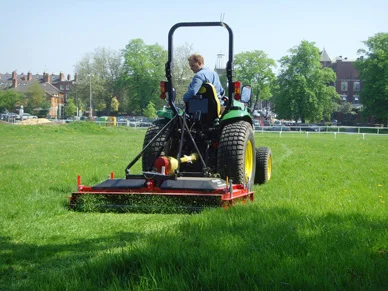

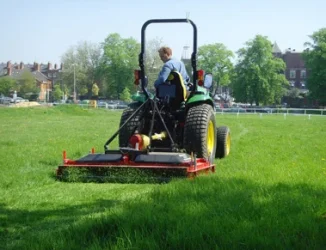

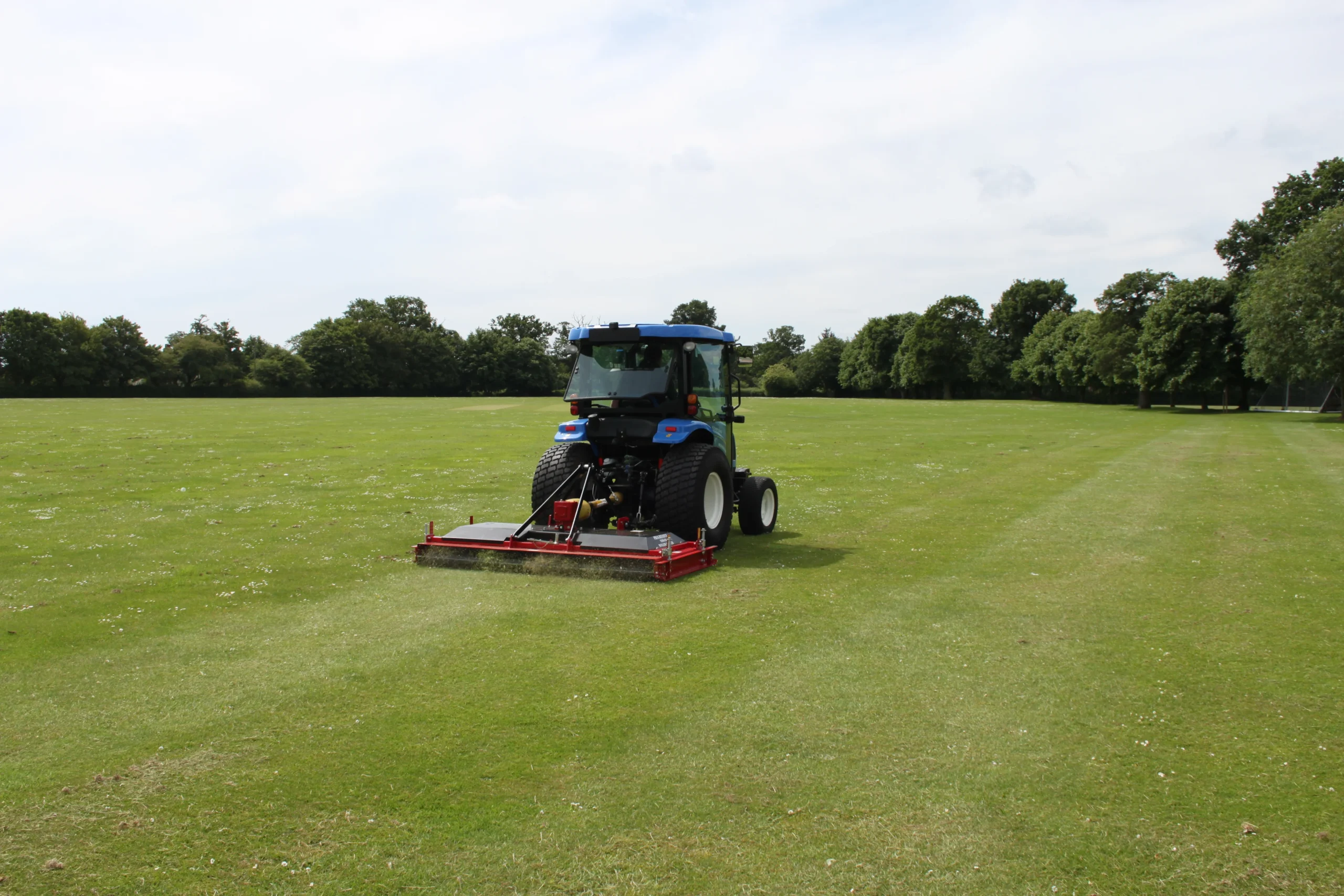

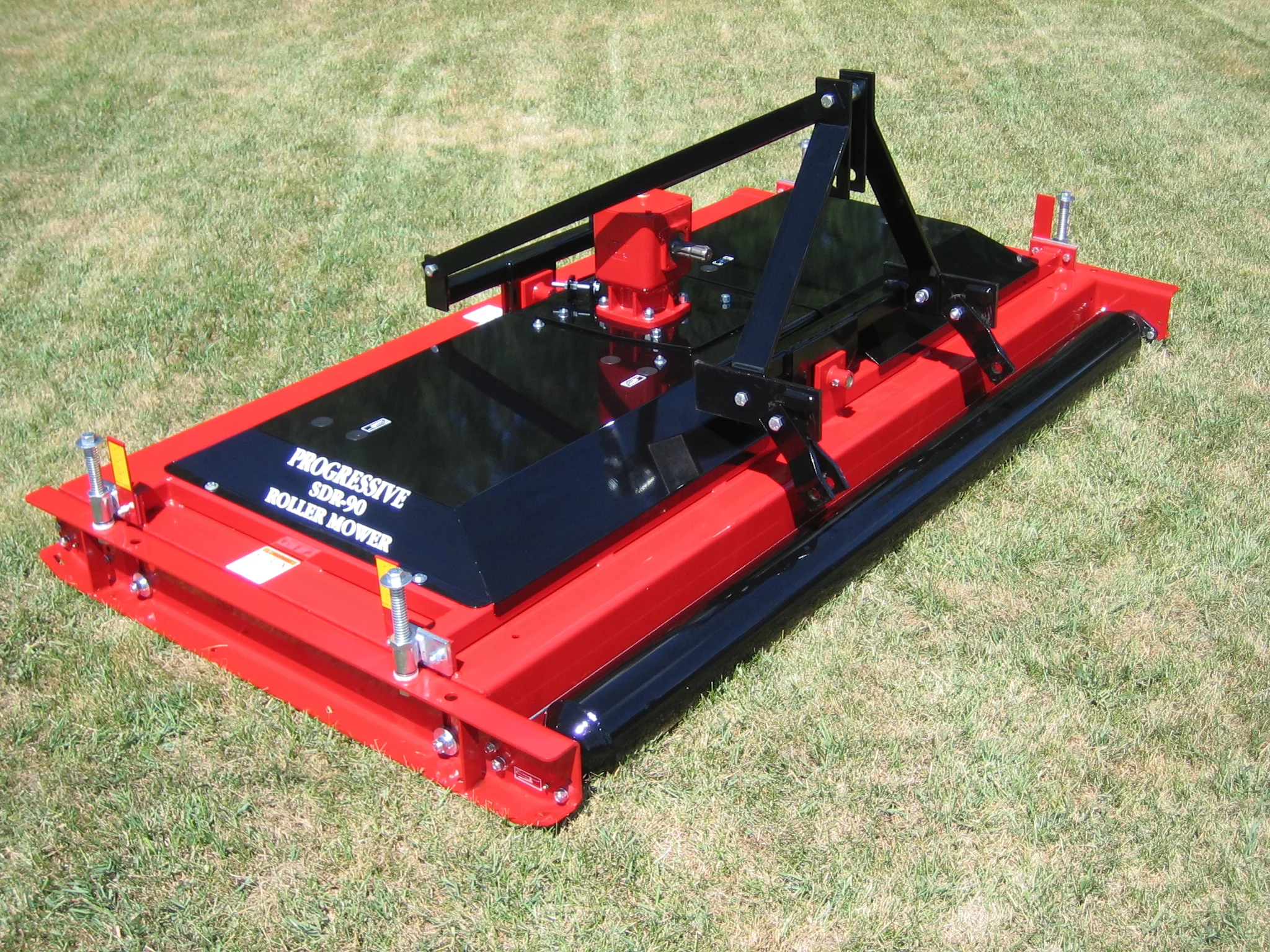

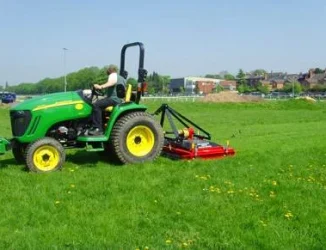

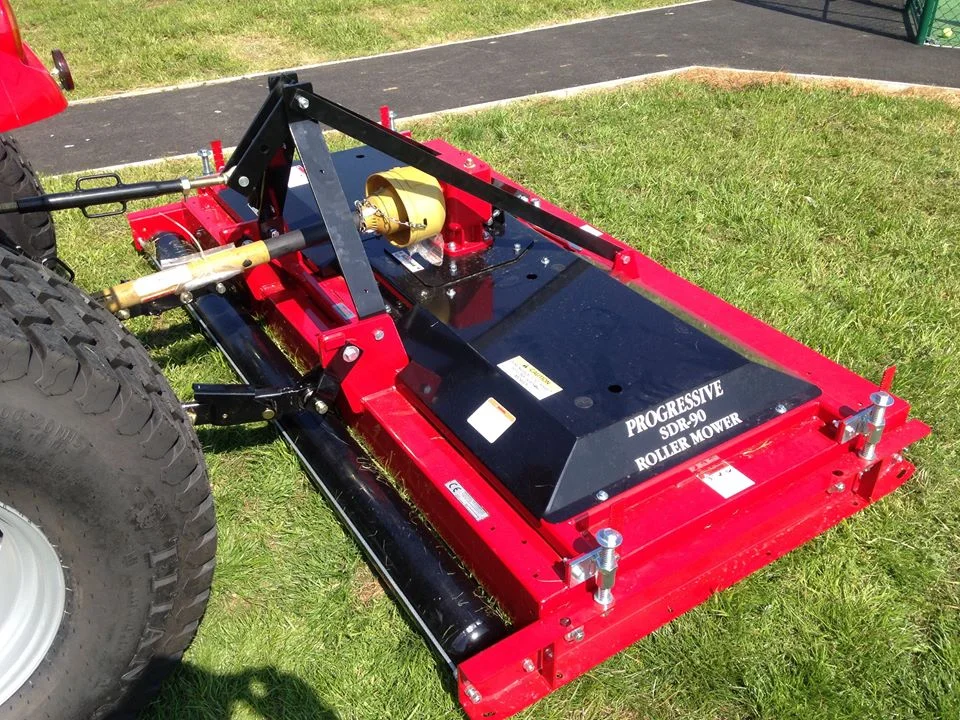

The Progressive SDR-90 is a three point hitch version of the popular tri-deck TDR-22 mower and it utilizes many of the same components. Not to be confused with other, light duty three point hitch mowers that are available, the SDR-90 has a 6” diameter rollers on both the front and rear across the full width of the deck. Ideal for smaller mowing jobs where a quality cut is mandatory, the SDR’s rollers allow you to cut as low as ½”, while simultaneously striping and rolling the mowing surface. To minimize service requirements, the SDR-90 is equipped with field proven maintenance free blade spindles. Progressive’s SDR-90 mower is another example of the ingenuity and quality that goes in to producing a durable, reliable rotary finishing mower that is easy to maintain. It shows once again why the SDR-90 is “The Better Built Choice”.

Specifications

Part Number

531990 (North America) 531990C (Worldwide)

Recommended PTO H.P

35

Mowing Capacity * (Assumes no overlap or turning)

2 mph 1.8 acres per hour*
4 mph 3.56 acres per hour*
6 mph 5.33 acres per hour*

Cut Height Range

1/2″ to 4″

Cutting Width

90″

Transport Width

92″

Weight

1380 lbs

Std. Equipment

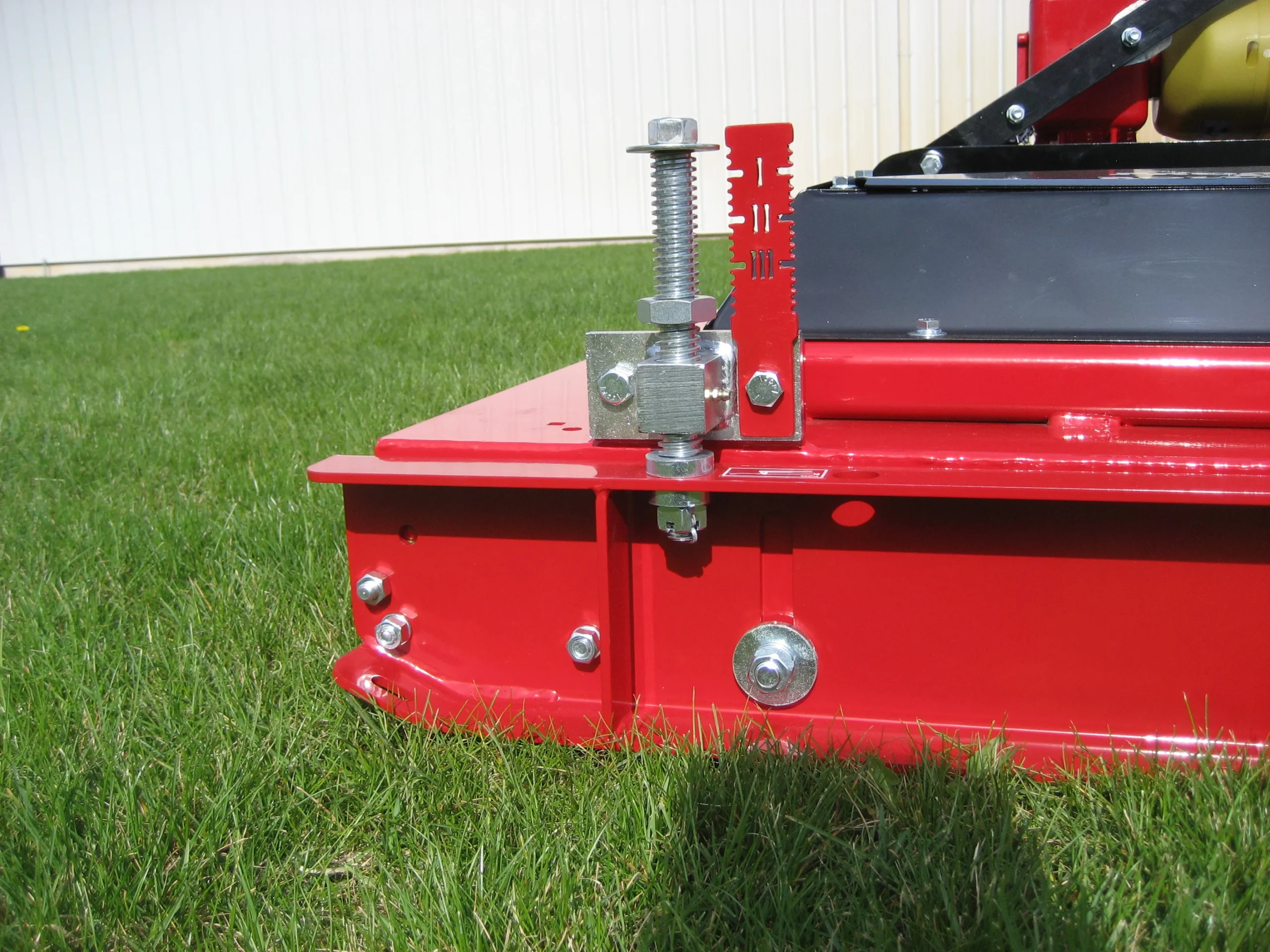

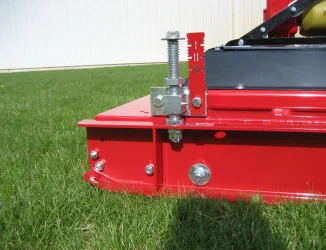

  • Heavy-duty construction, open rear discharge, easy cutting height adjustment
  • Heavy-duty 6” dia. rollers supported by 2 – 1.25” ductile HEX bearings.
  • Maintenance free blade spindle assemblies for reduced maintenance.
  • High lift blades for superior cut. Tip speed 18300 FPM.
Opt. Equipment
  • 522365 24” Low Lift Blade (four required)
  • 522364 24” High Lift Blade (four required)
  • Compatible with the Pro-FORE Blade
  • System (Click for details)
DISCLAIMER

Under our policy of continuous improvement, we reserve the right to change specifications and designs without prior notice. The illustrations shown do not necessarily represent the standard version of product offered by Progressive Turf Equipment Inc.
