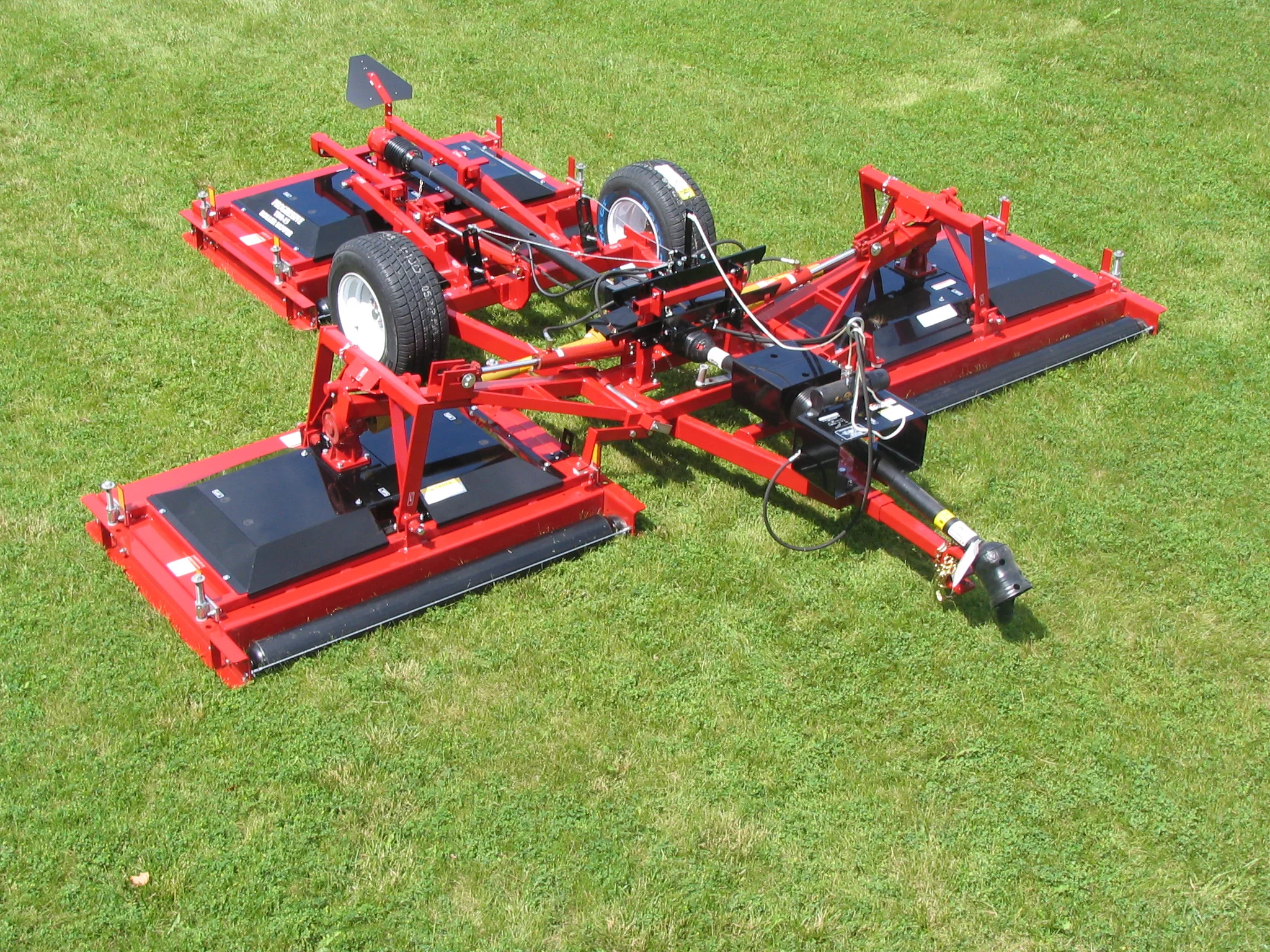

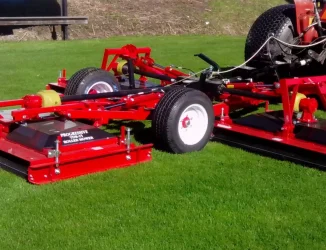

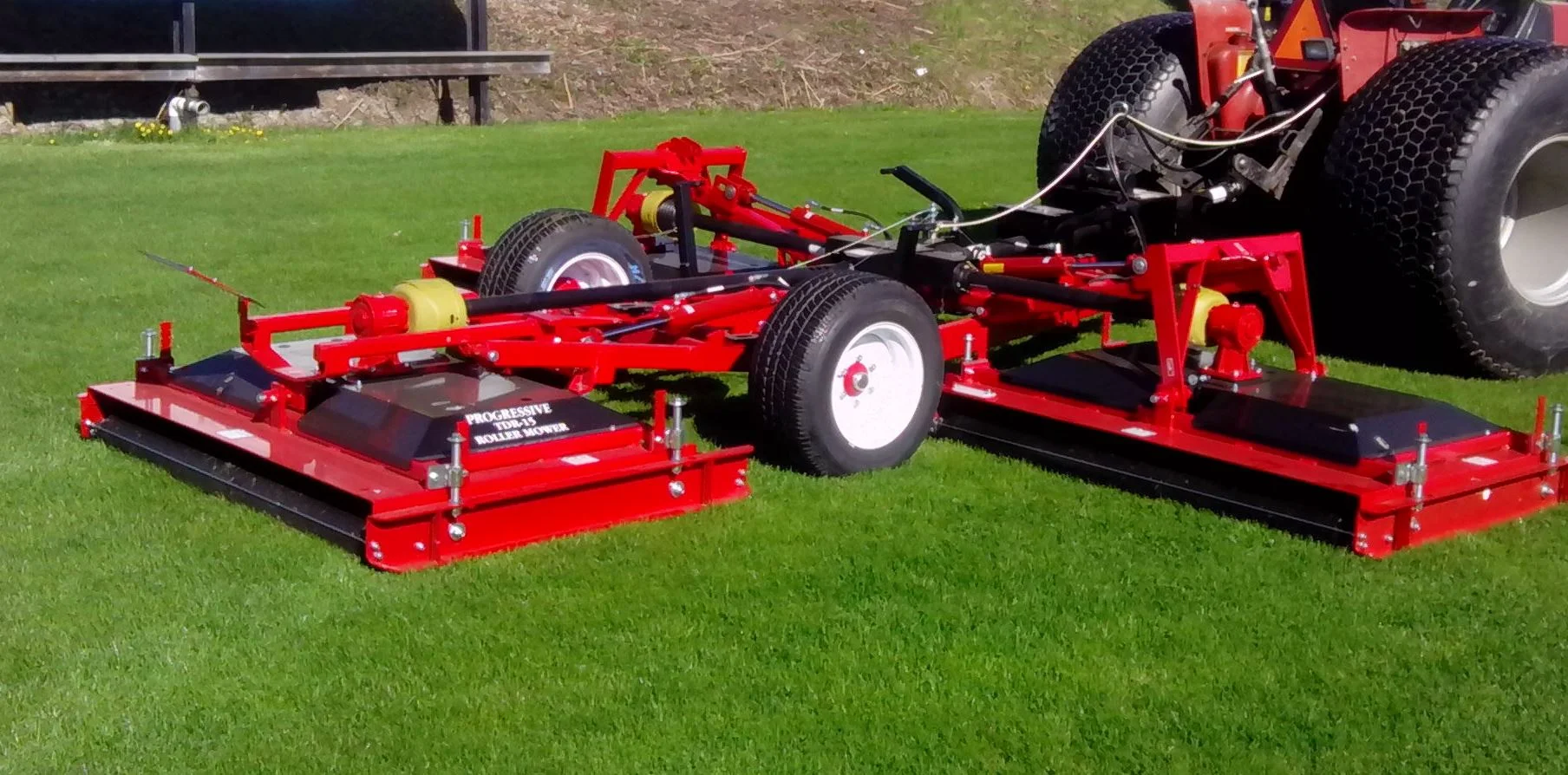

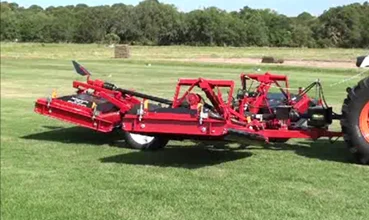

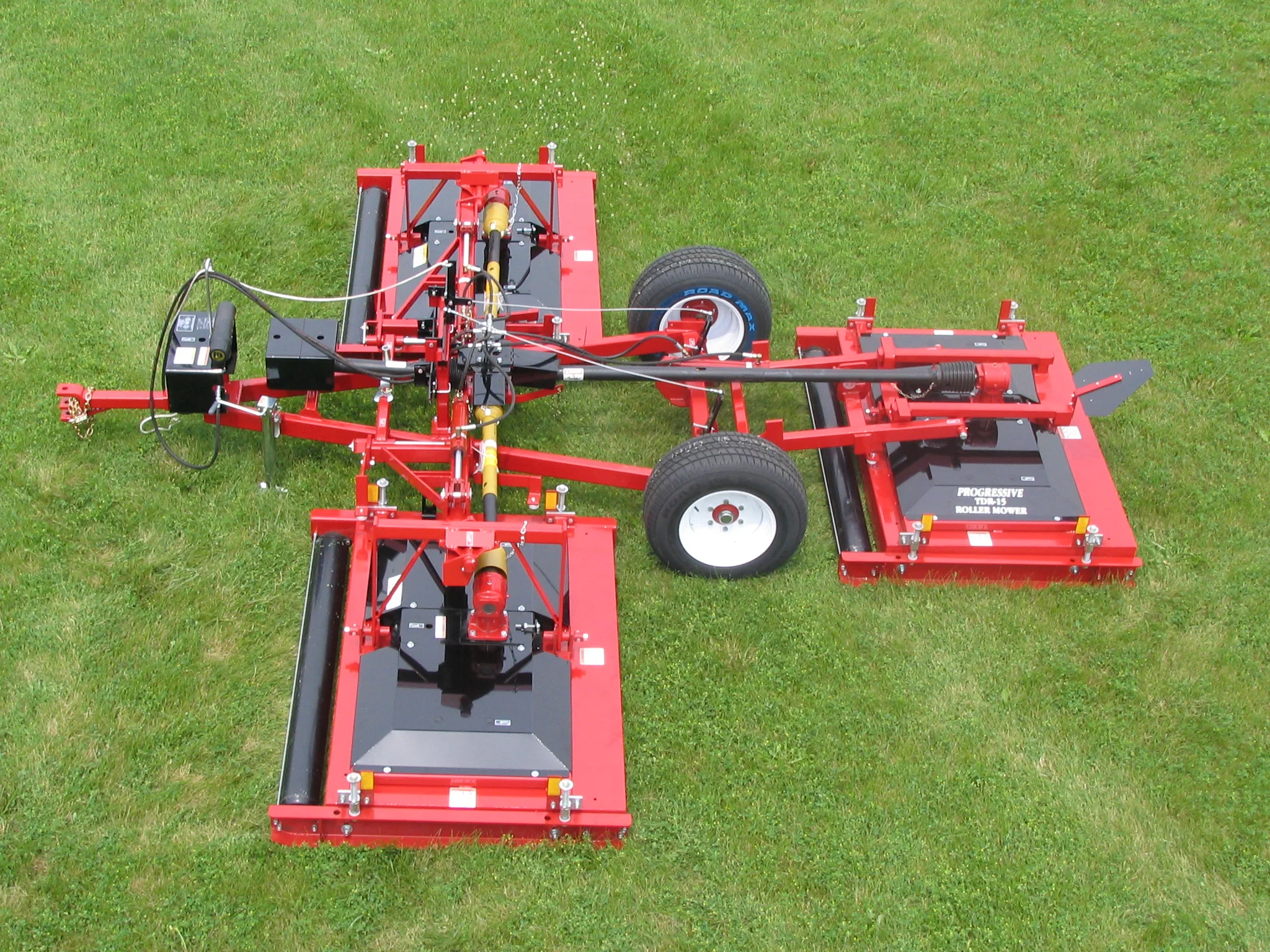

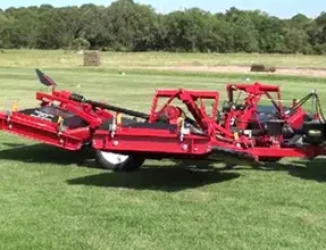

TDR-15

Tri-Deck Roller Finishing Mower
CUTTING WIDTH
15' 6"
CUT HEIGHT RANGE
1/2" to 4"
RECOMMENDED PTO H.P.
30 to 50
TDR-15

Overview

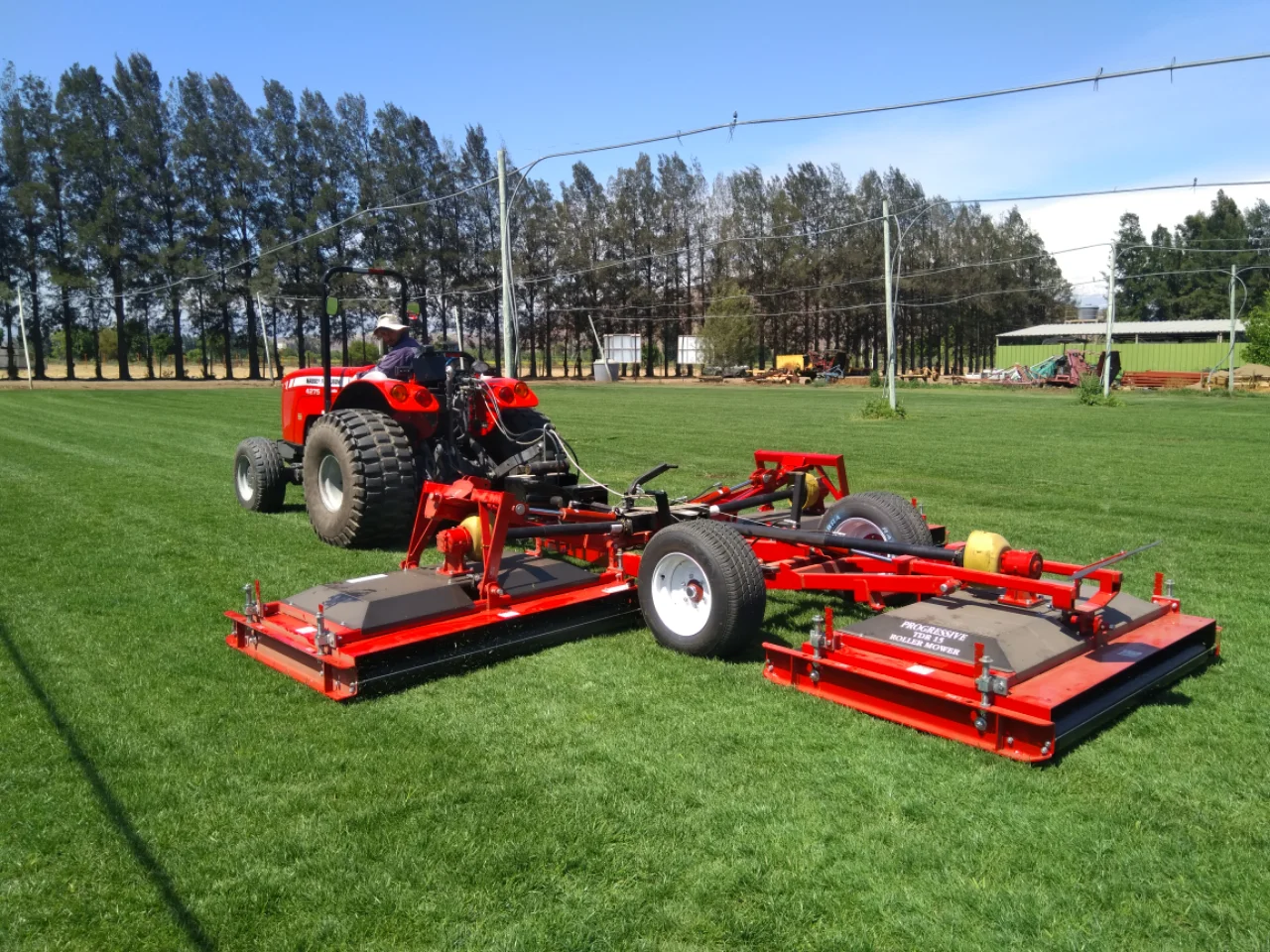

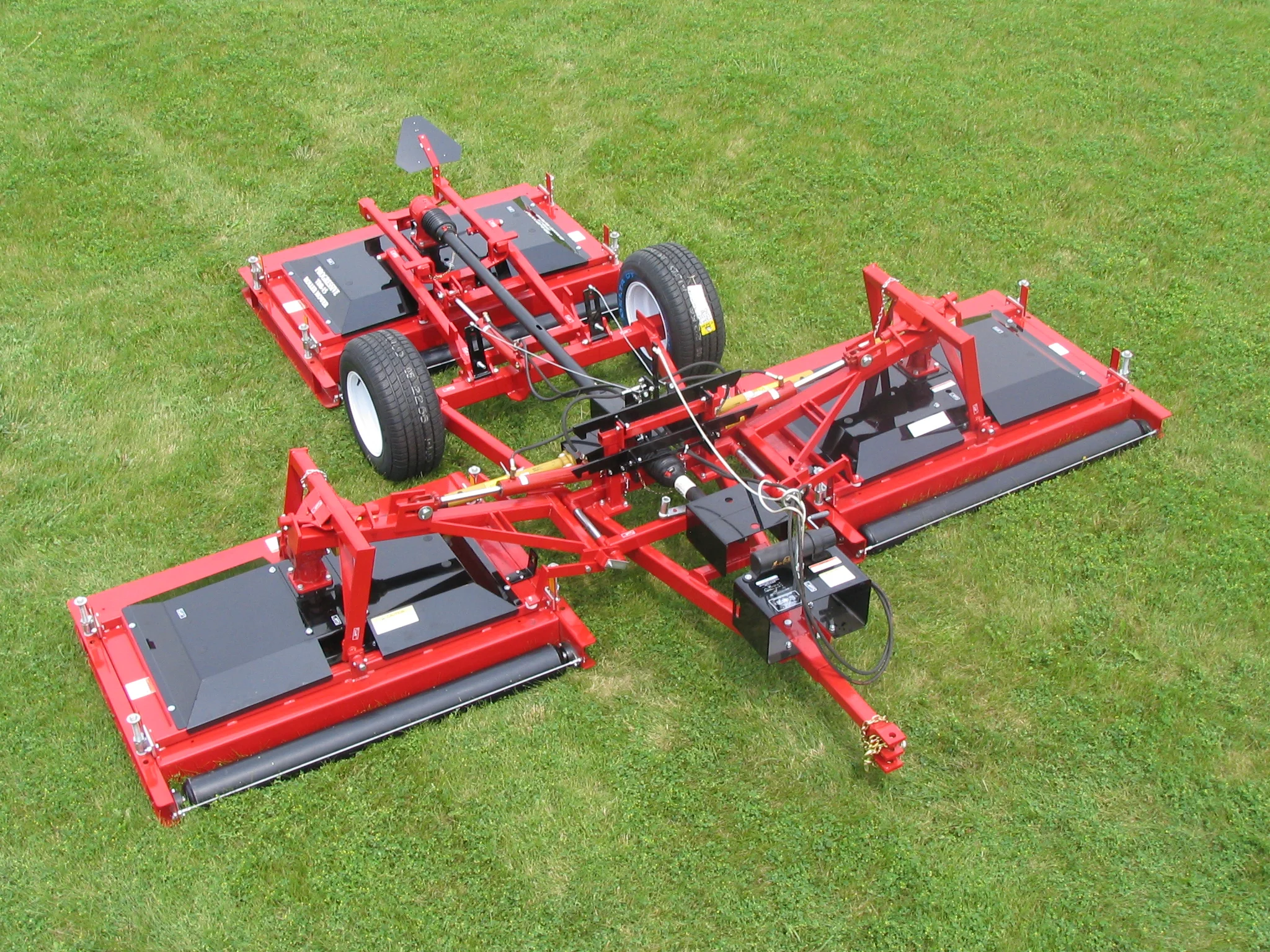

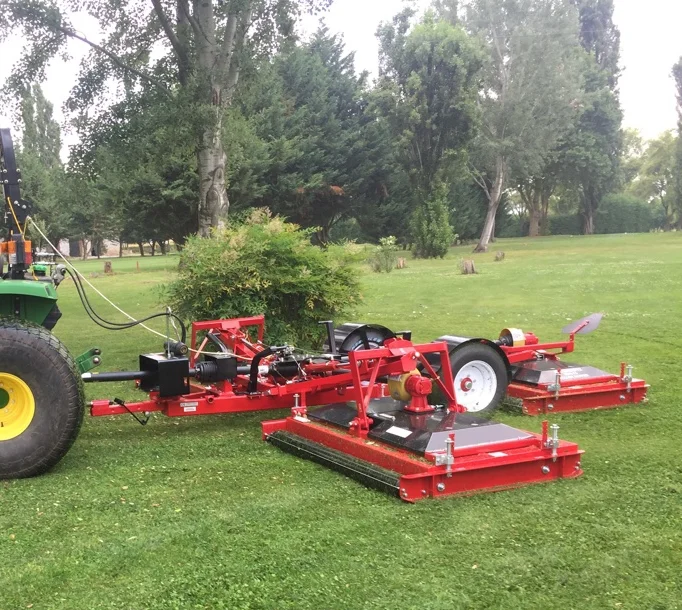

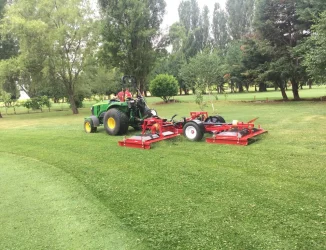

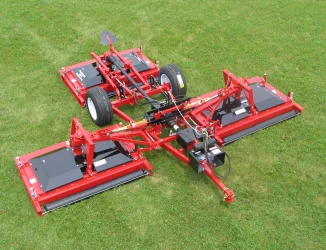

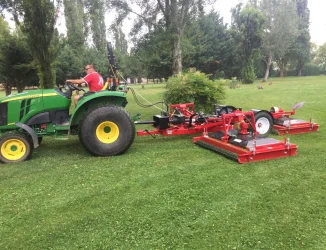

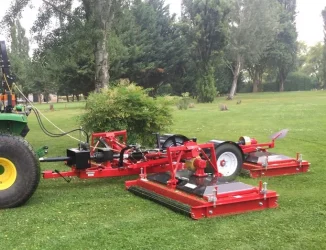

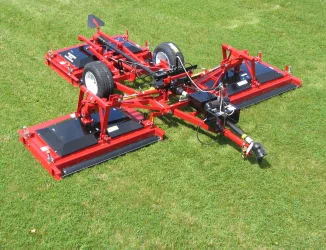

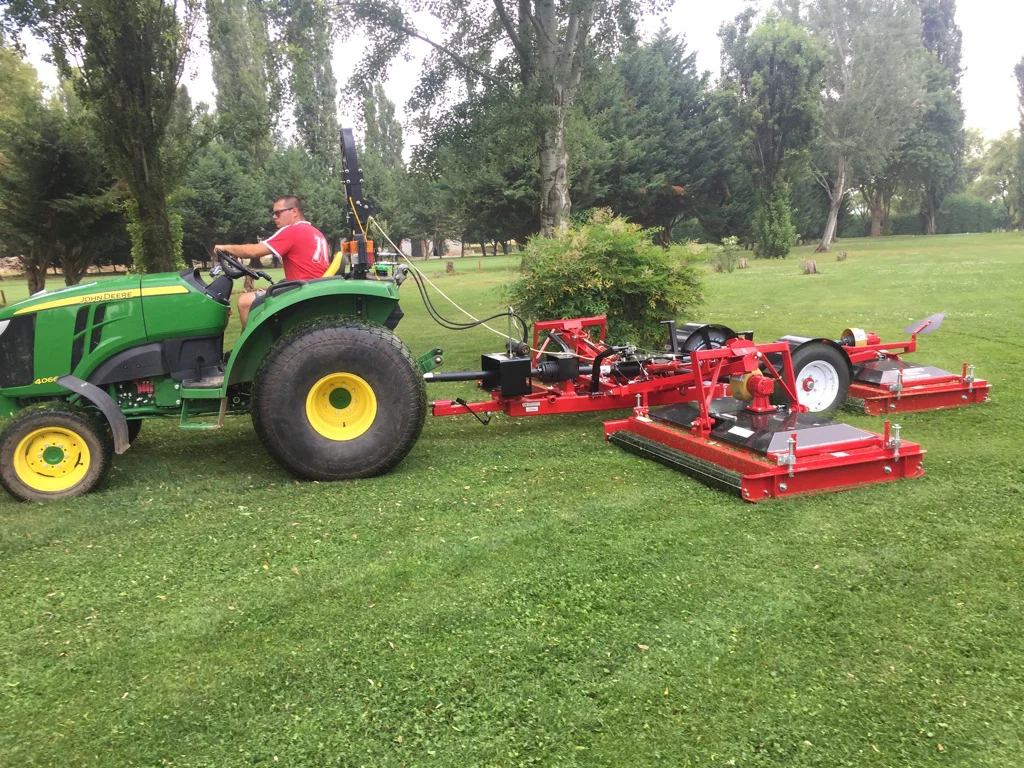

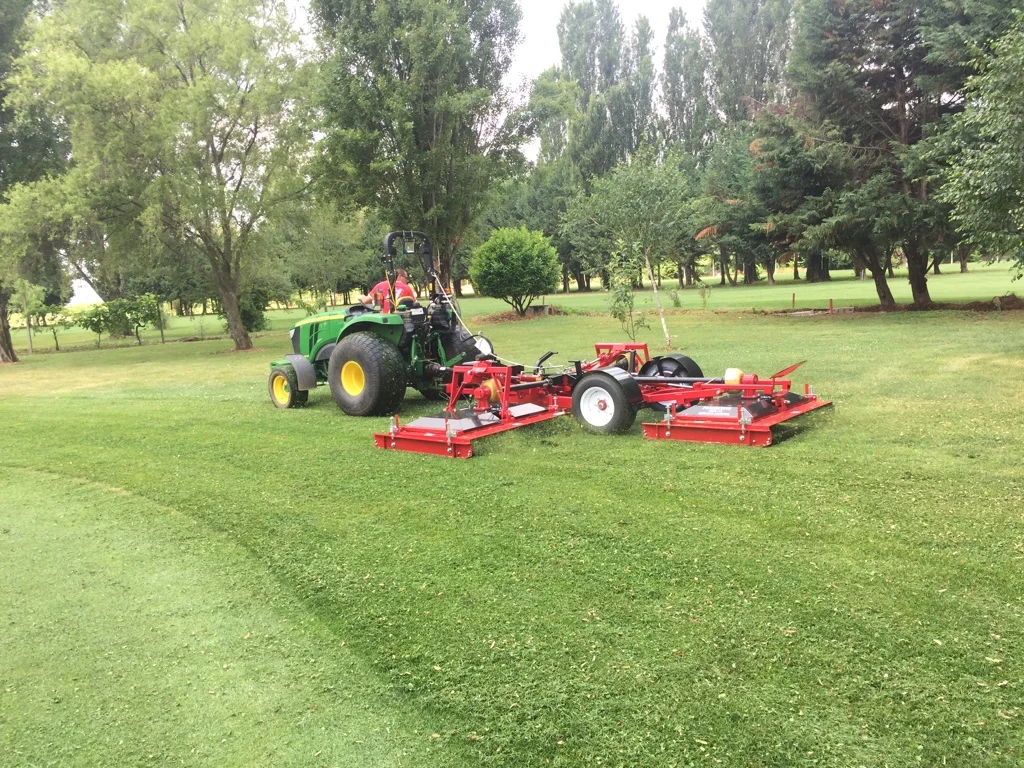

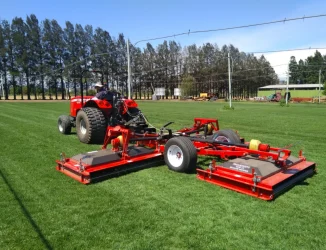

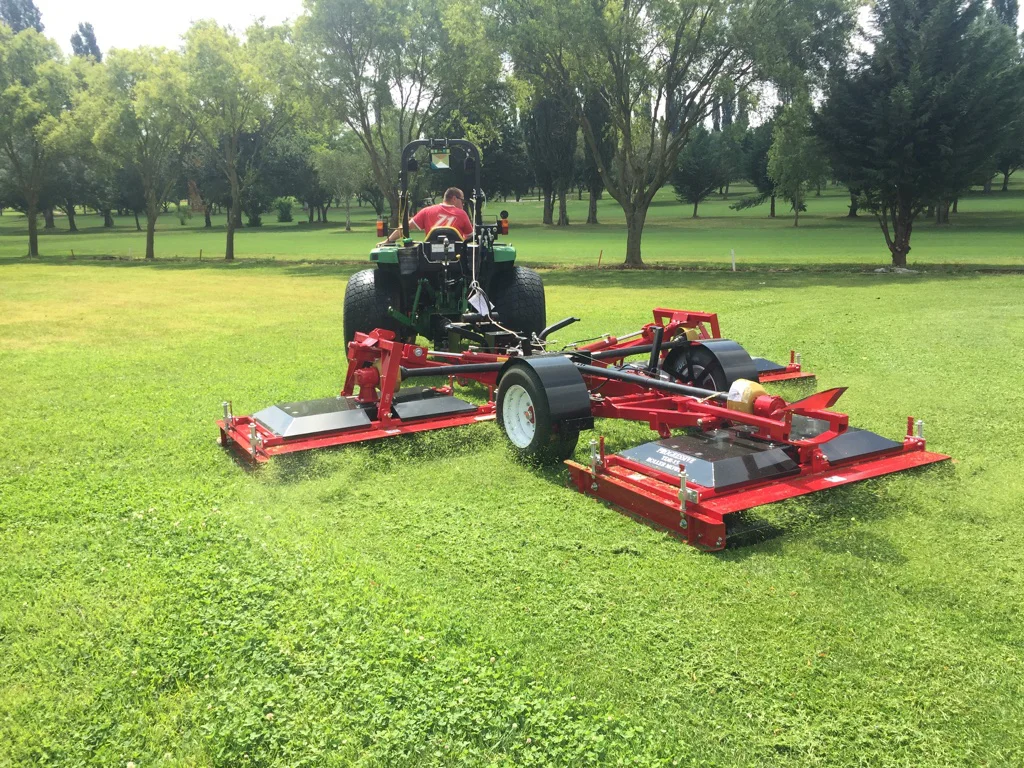

Progressive’s 15½ foot TDR-15 Tri-Deck Roller finishing roller mower is an ideal choice for municipal grounds care, parks, sports facilities, polo fields, or estates, in either wet or dry conditions. This versatile mower can cut as low as ½ inch. Full width rollers smooth the field surface and stripe for a pleasing visual impact. The rollers can speed divot repair, promote root-to-soil contact, aid plant health and help moisture retention. The superior quality cut comes from high lift rotary blades that create enough vacuum to lift the grass for a clean uniform cut and then disperse the clippings evenly over the rollers. Easy access to height adjusters makes setting the height of cut quick and precise. Rear rollers also provide extra protection for the discharge of clippings and debris. Progressive’s exclusive Pro Lift-N-Turn™ is standard equipment — this allows the decks to be temporarily lifted slightly off the ground with the PTO still engaged and without fear of driveline damage while turning. The TDR-15 is another example of the ingenuity and quality that goes into producing a durable and productive rotary finishing mower that is easy to maintain. The TDR-15 not only provides versatility of use and quality of construction, it is “The Better Built Choice”.

Specifications

Part Number

528750B (North America) / 528750D (Worldwide)

Recommended PTO H.P.

30 to 50

Mowing Capacity * (Assumes no overlap or turning)

2 mph 3.75 acres per hour *
4 mph 7.5 acres per hour *
6 mph 11.3 acres per hour *

Cut Height Range

1/2″ to 4″

Cutting Width

15′ 6″

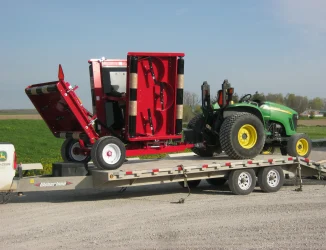

Transport Width

97″

Transport Tires

P275 / 60 R15 Automotive Radials

Transport Height

7′ 10″

Weight

3725 lbs

Std. Equipment
  • Heavy-duty construction, open rear-discharge, easy cutting height adjustment.
  • Heavy-duty 6” dia. rollers supported by 2 – 1.25” ductile flange HEX bearings.
  • Maintenance free blade spindle assemblies for reduced maintenance.
  • All decks turn the same direction for control of discharge
  • High lift blades for superior cut. Tip speed 18,287 FPM.
  • Transport tires P275/60 SR15.
  • CV shaft input system for easy connection to any tractor
Opt. Equipment
  • 528153 Fender kit (both sides), with provision to mount lights
  • 522603 High Lift Blade Kit (replacement set of 9 fixed black blades)
DISCLAIMER

Under our policy of continuous improvement, we reserve the right to change specifications and designs without prior notice. The illustrations shown do not necessarily represent the standard version of product offered by Progressive Turf Equipment Inc.
