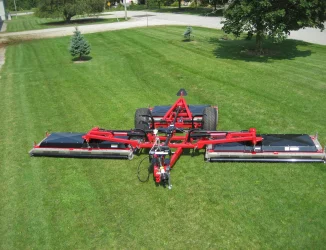

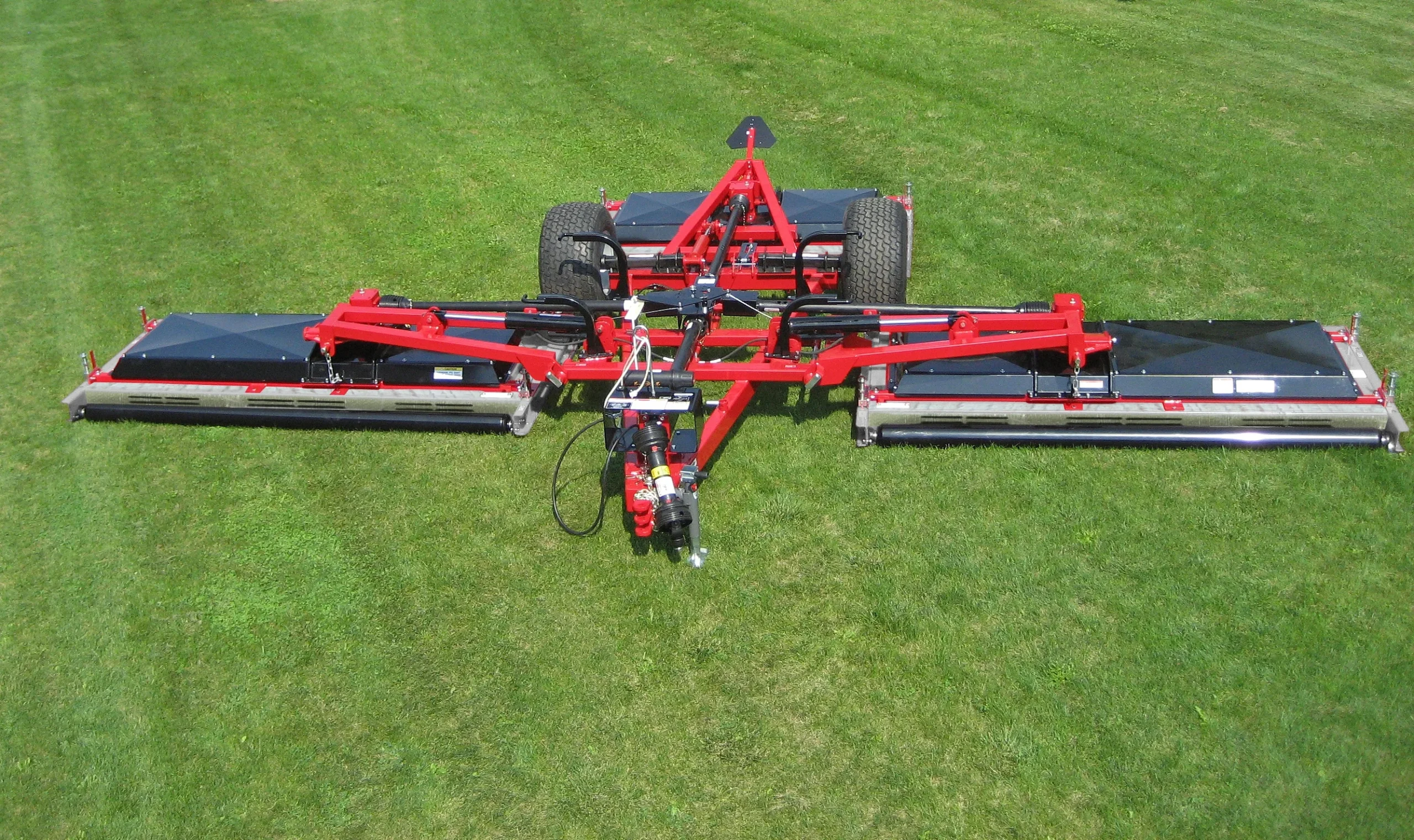

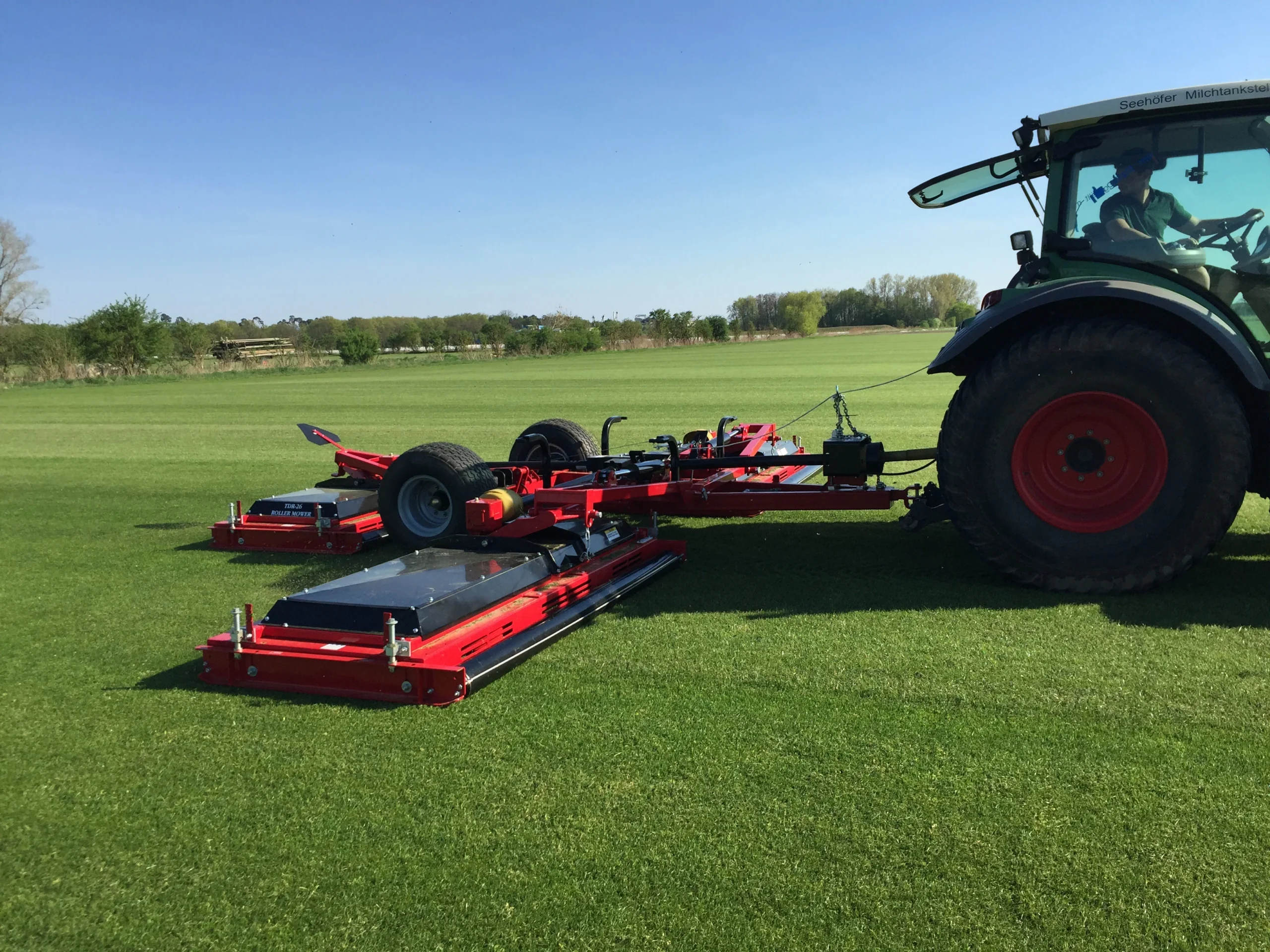

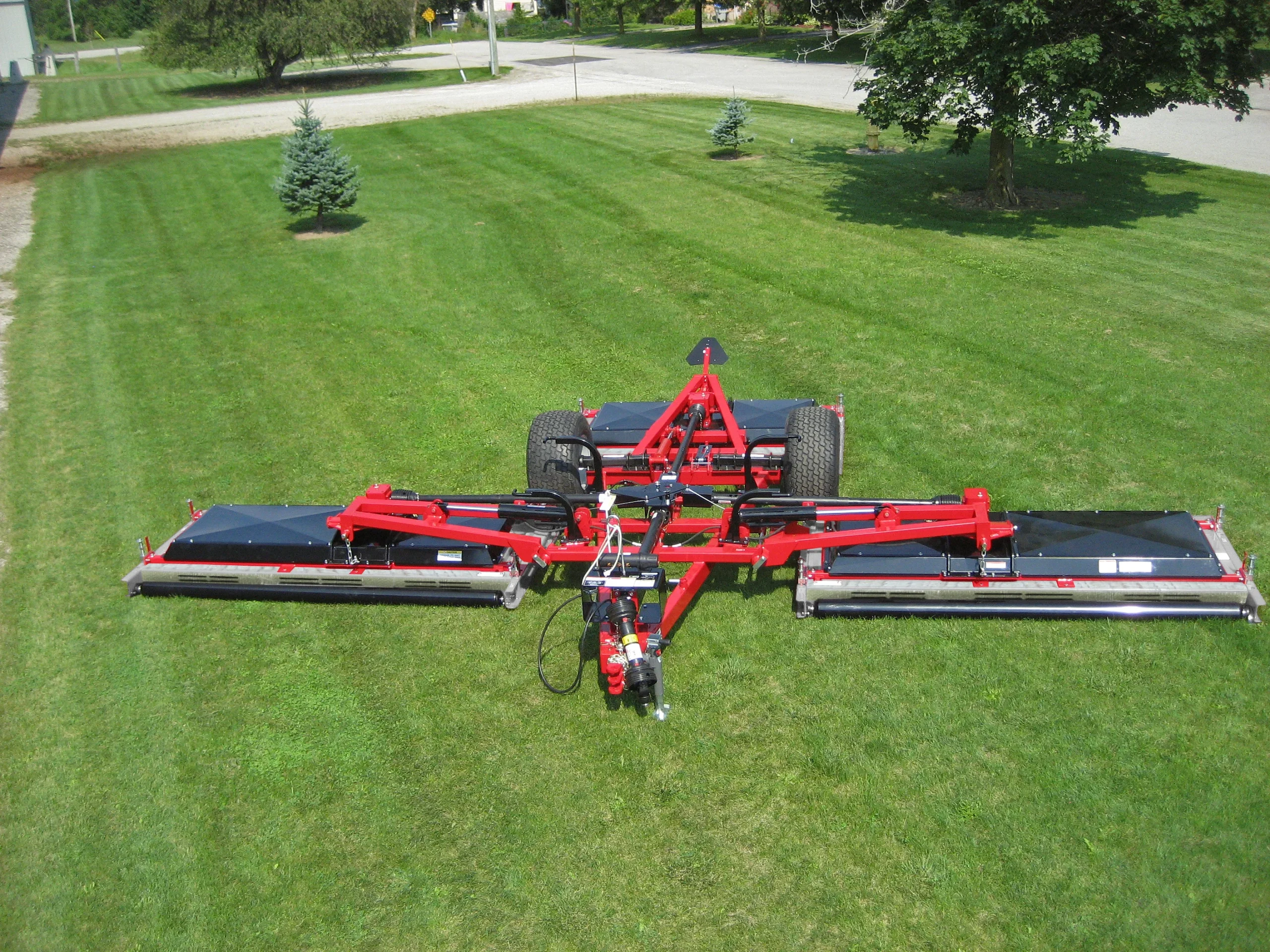

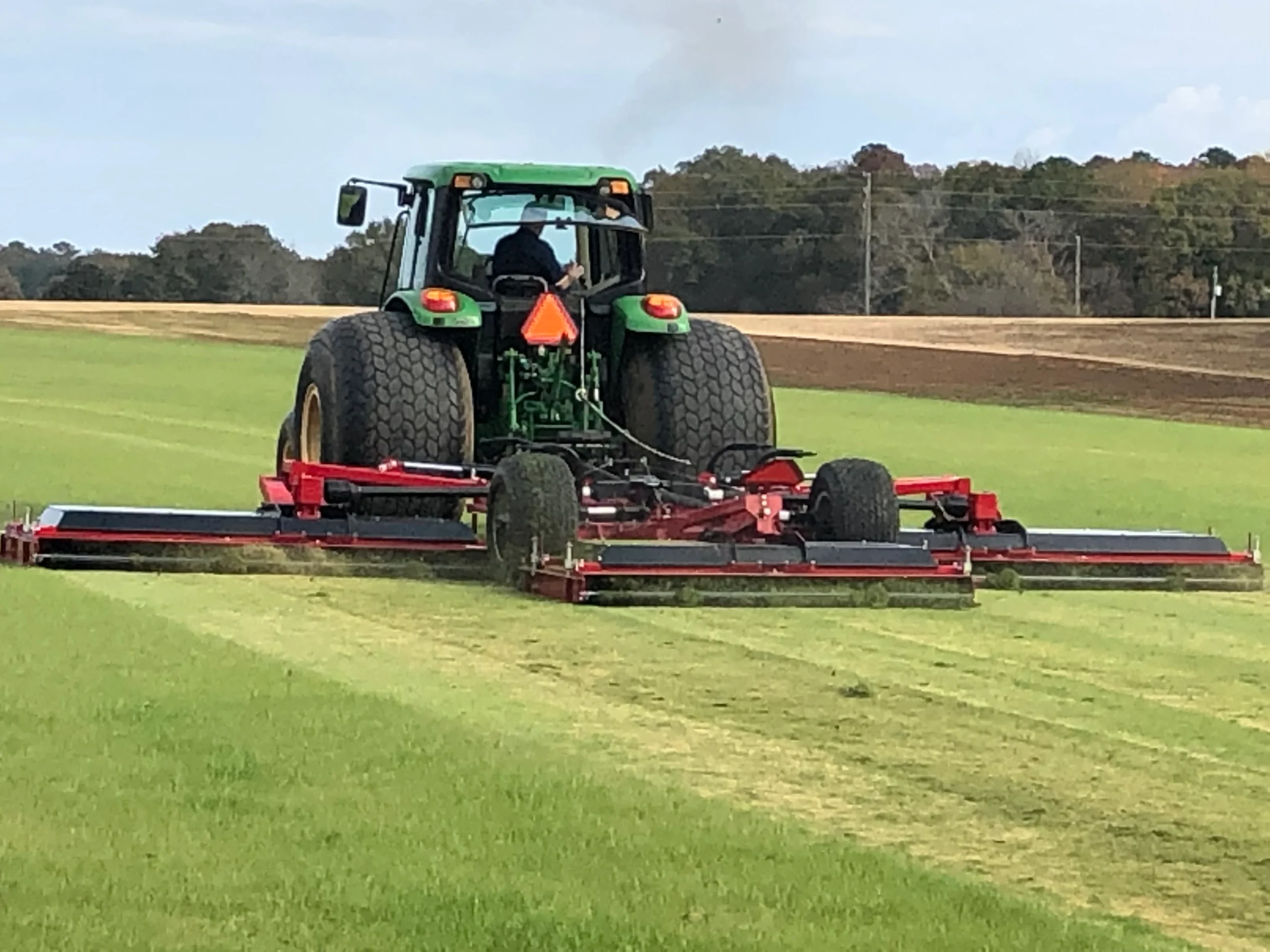

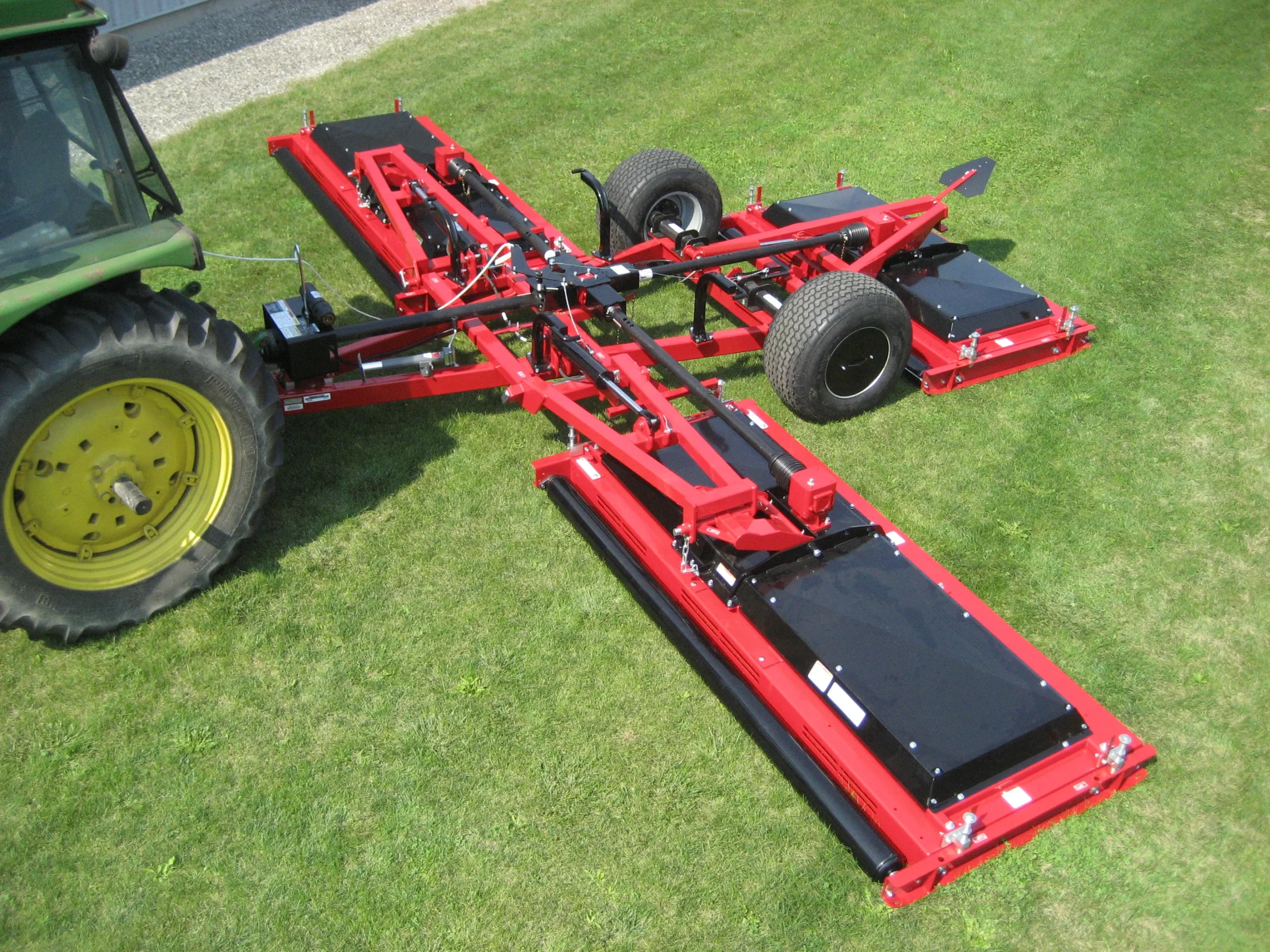

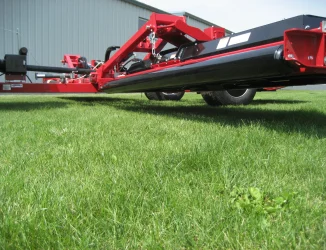

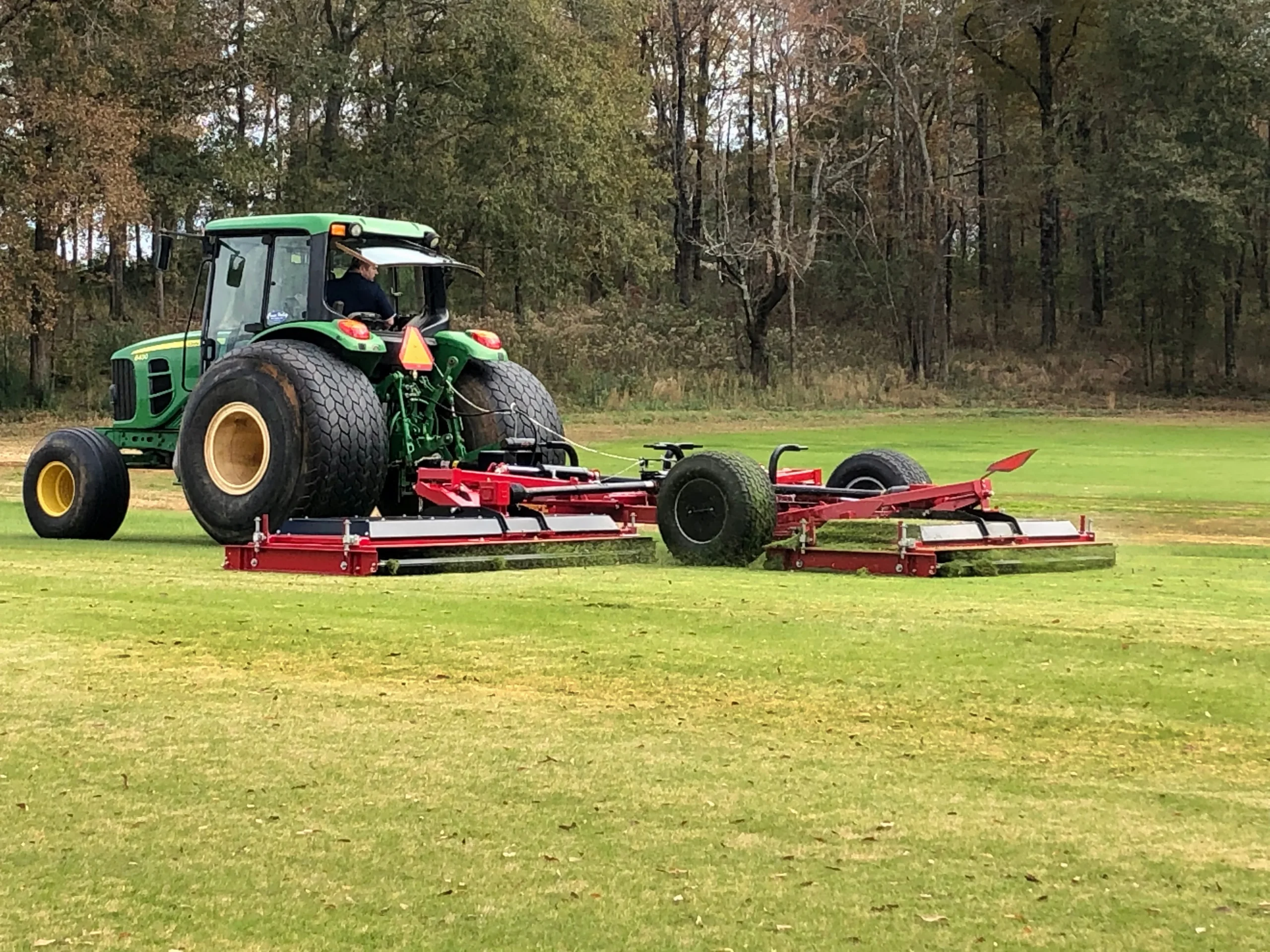

TDR-26

New Equipment

Harlo Rough Terrain Forklift

CUTTING WIDTH

25' 8"

CUT HEIGHT RANGE

1/2" to 4"

RECOMMENDED PTO H.P.

75 to 90

Overview

Maximizing productivity and reducing operating cost is what the TDR-26 / TDR-26G is all about. Designed with a ‘ideal sized’ 25’8” cutting swath, it balances the need for increased cutting capacity in a cost effective roller mower. The TDR-26 / TDR-26G is “easy on the turf” when turning at the headlands for more harvestable acres! Like all of our mowers, we designed the TDR-26 as if we were maintaining the mower ourselves, so simplifying and reducing service requirements was an important goal. Maintenance free blade spindles, with extended 100 hour PTO shaft greasing intervals and fewer grease fittings overall means more time cutting – less time maintaining. We kept it simple: no electro-hydraulic valves or sensors are required. For the ultimate in reliability, many components are fully interchangeable with Progressive’s field proven TDR-22 and TDR-30 models. Focusing on the needs of the natural grass producer, Progressive offers four blade options for the TDR-26. The producer can optimize their cut and maintenance costs depending upon the growing conditions by selecting between two fixed blades and two Pro-EZ Change replaceable tip blade options – all featuring Progressive’s renown cut quality

AVAILABLE IN PAINTED AND GALVANIZED DECK SHELL FINISH

Specifications

Part Number	520826 (Painted decks) 520826G (Galvanized Decks) for North America / 520826C (Painted Decks) 520826GC (Galvanized Decks) for Worldwide
Recommended PTO H.P	75 to 90
Mowing Capacity * (Assumes no overlap or turning)	4 mph 12.4 acres per hour * 6 mph 18.6 acres per hour * 7.5 mph 23 acres per hour *
Cut Height Range	1/2″ to 4″
Cutting Width	25′ 8″
Transport Width	104″
Transport Tires	33×16 LL-16.1 10pr
Weight	6200 lbs
Transport Length	17′
Std. Equipment	The tractor is required to have a single hydraulic float circuit Heavy-duty construction, open rear-discharge, easy cutting height adjustment. Heavy-duty 6” dia. Rollers supported by 2 – 1.25” ductile HEX bearings. Maintenance free blade spindles and 100 hr greasing intervals on all PTO shafts. Fourteen 24” blades for a superior cut. Tip speed 18,292 FPM Pro Lift-N-Turn system. Bolt on galvanized deck skins, provide ease of deck replacement if necessary 33×16 LL-16.1 10pr transport tire. 7,000# load rated axle Independent suspension on transport wheels for smoother transport.
Opt. Equipment	230057 Spare – high floatation tire and rim (33×16 LL-16.1 10pr) HIGH LIFT BLADES – 522610 High Lift Fixed Blade Kit (6 Pieces per kit) QTY 1 and 607592 (8 pieces per kit) QTY 1 Required LOW LIFT BLADES – 607594 Low Lift Fixed Blade Kit (8 Pieces per kit) QTY 1 and 522618 (6 Pieces per kit) QTY 1 required 526594 PRO EZ II Blade Tips Bulk Pack (50 Pieces – W/O hardware) HIGH LIFT 526648 PRO EZ II Blade Tips Bulk Pack (50 Pieces – W/O hardware) LOW LIFT 526866 PRO-EZ II Blade Bolt Kit (25 Pieces W/ hardware) 530060 PRO-EZ II Blade Bar Kit (14 Pieces per kit) Compatible with the Pro-FORE Blade System (Click for details)

DISCLAIMER

Under our policy of continuous improvement, we reserve the right to change specifications and designs without prior notice. The illustrations shown do not necessarily represent the standard version of product offered by Progressive Turf Equipment Inc.
