TDR-30

New Equipment

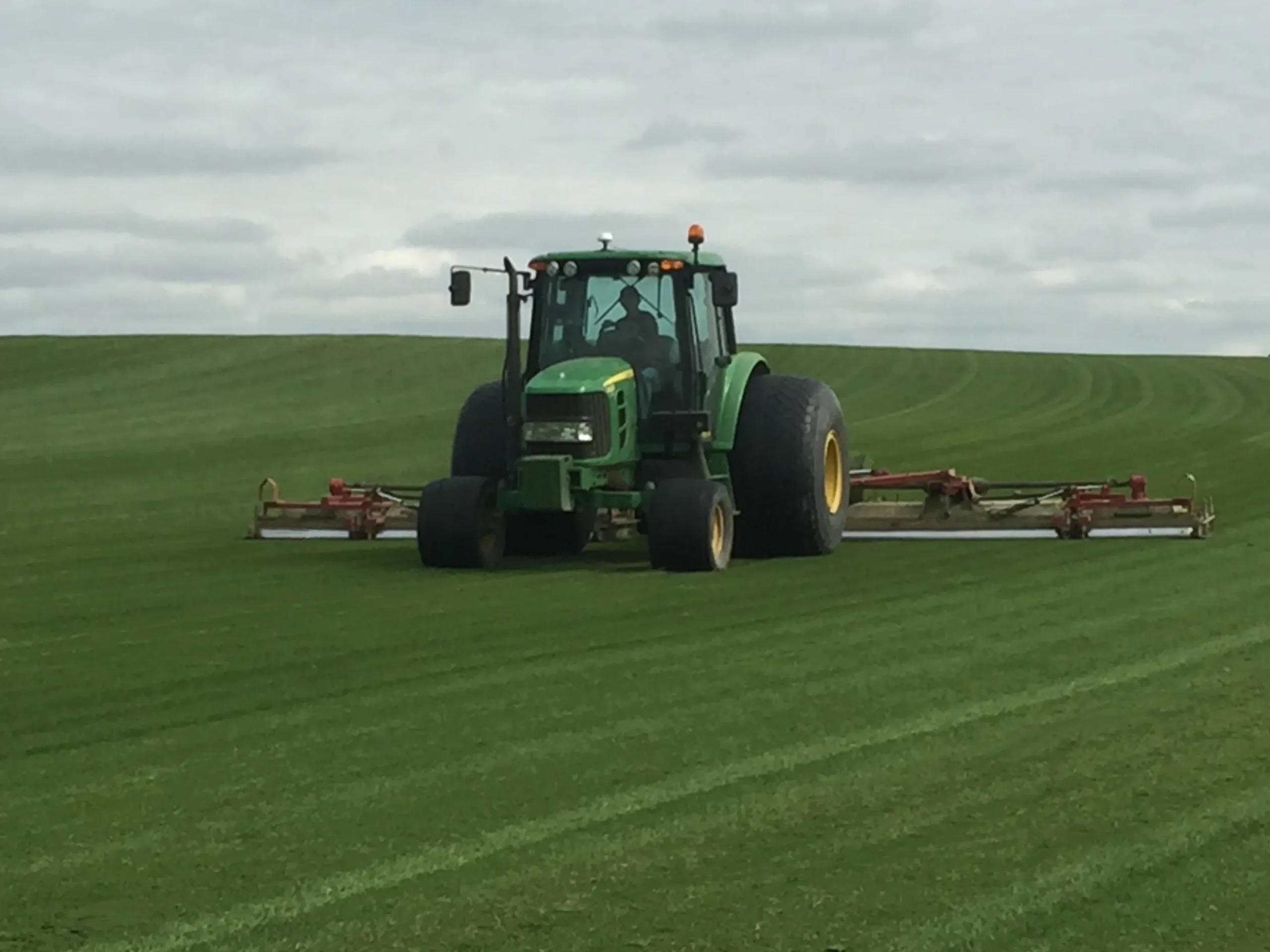

Tri-Deck Roller Finishing Mower

CUTTING WIDTH

29' 6"

CUT HEIGHT RANGE

1/2" to 3 1/2"

RECOMMENDED PTO H.P.

85 to 130

Overview

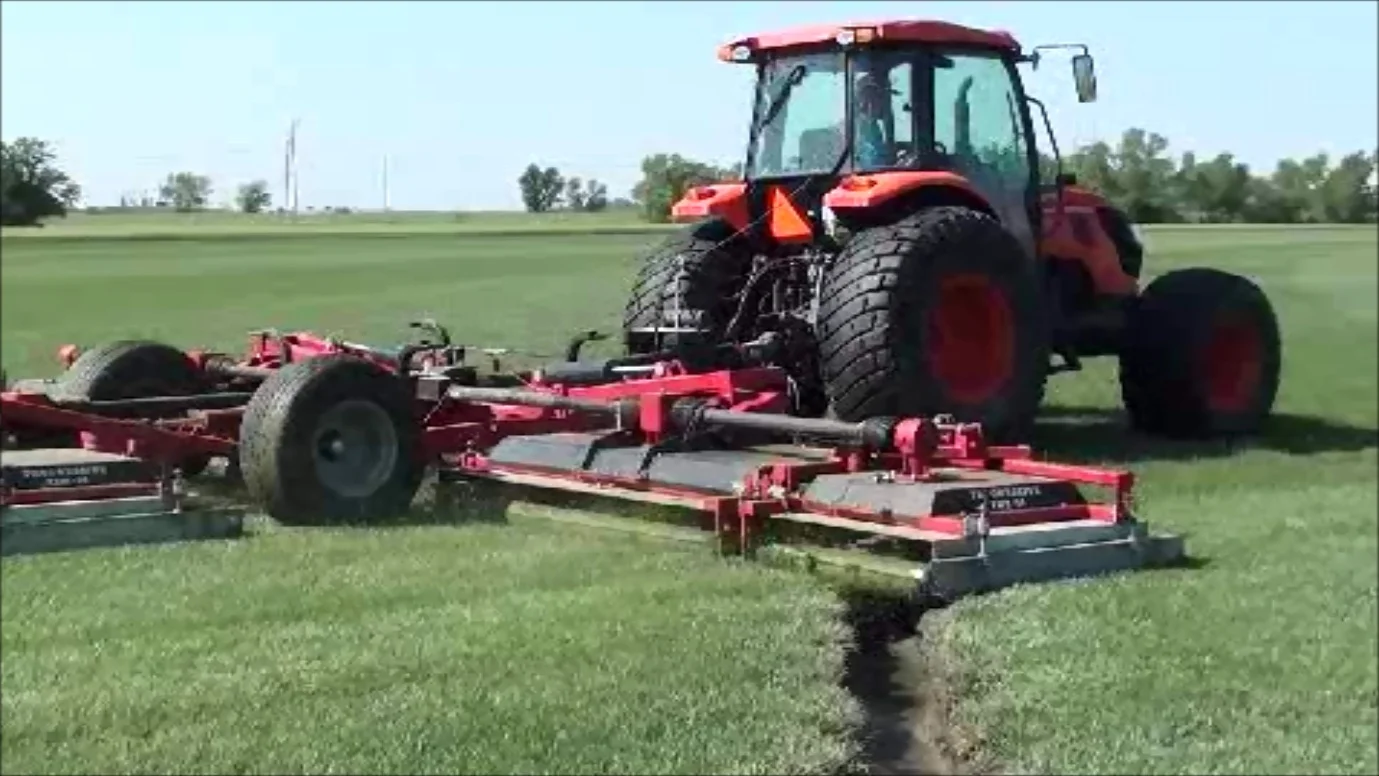

Progressive once again has raised the bar in the favor of natural grass producers, offering unmatched productivity on every pass. The TDR-30 Roller Mower was designed with a ‘right sized’ 29’6” cutting swath. Progressive has balanced the need for increased cutting capacity with the available horsepower of tractors commonly used in natural grass production. The TDR-30’s unique Flex-Deck design covers more width per pass and is “easy on the turf” when turning at the headlands, for more acres cut in less time! Focusing on the needs of the natural grass producer, Progressive offers four blade options for the TDR-30. The producer can optimize his cut and maintenance costs depending upon the growing conditions by selecting between two fixed blade lifts and two Pro-EZ Change Blade options – all featuring the renown Progressive cut quality. Like all of our mowers, we designed the TDR-30 as if we were maintaining the mower ourselves, so eliminating all daily service requirements was an important design goal. Maintenance free blade spindles, extended 100 hour PTO shaft greasing intervals and fewer grease fittings all mean more time cutting – less time maintaining. And to keep the TDR-30 cutting over the long term, pivot bushings are easily replaced.

AVAILABLE ONLY IN GALVANIZED DECK SHELL FINISH

Specifications

Part Number	607930G (North America) 607930GC (Worldwide)
Recommended PTO H.P	85 to 130
Mowing Capacity * (Assumes no overlap or turning)	4 mph 14.3 acres per hour * 6 mph 21.5 acres per hour * 7.5 mph 26.8 acres per hour *
Cut Height Range	1/2″ to 3 1/2″
Cutting Width	29′ 6″

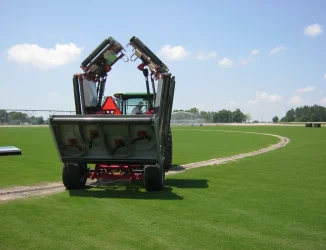

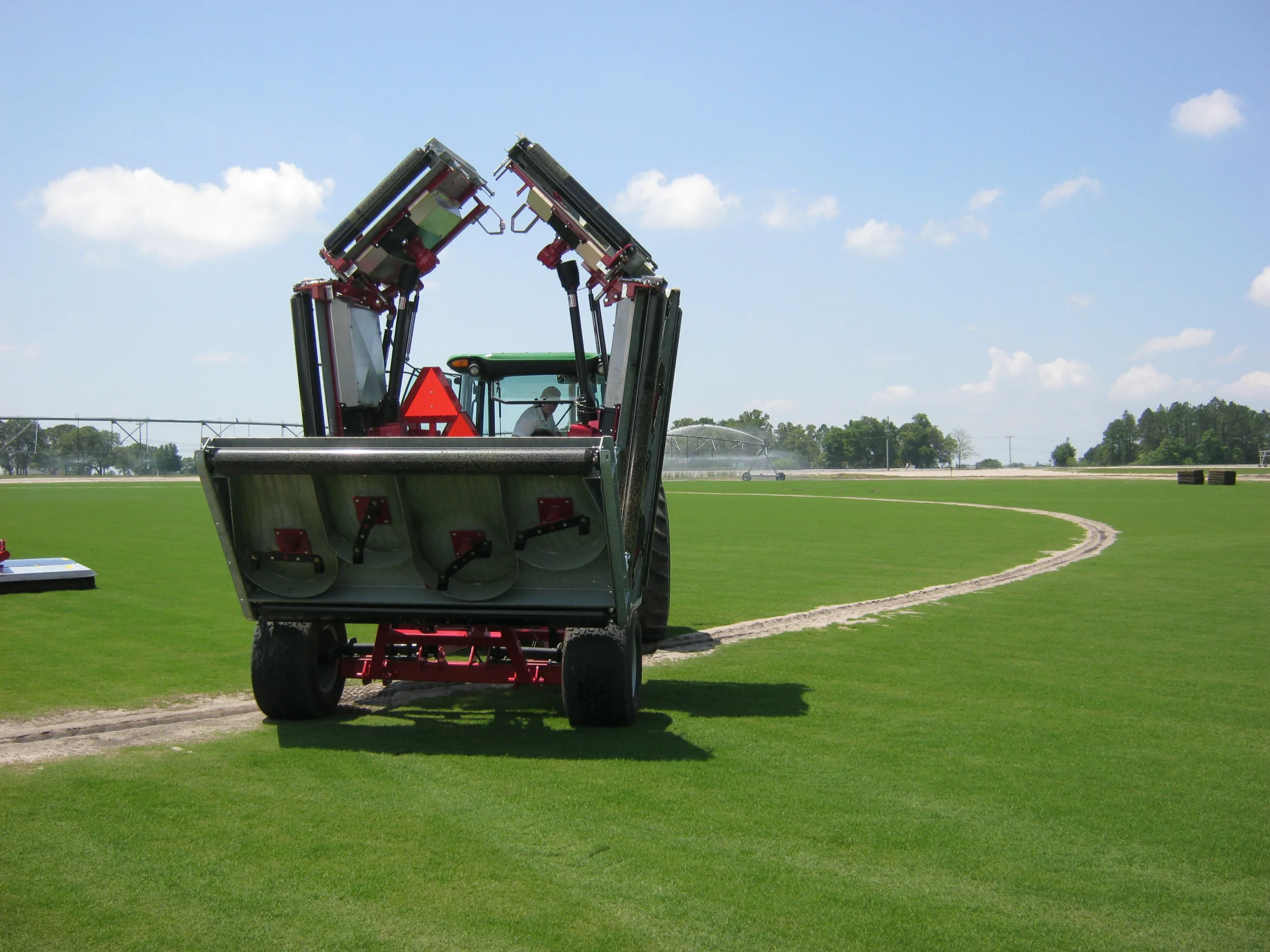

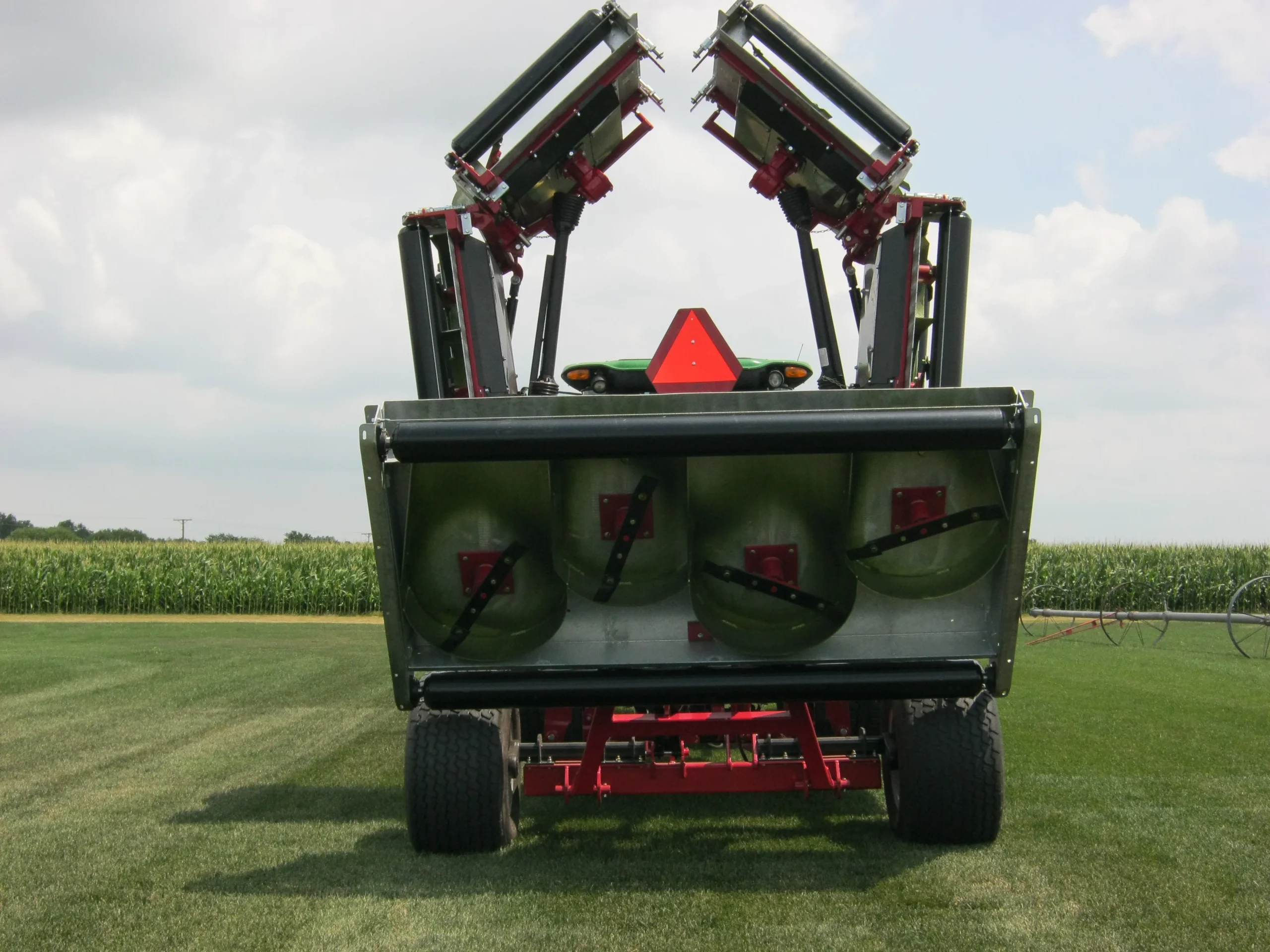

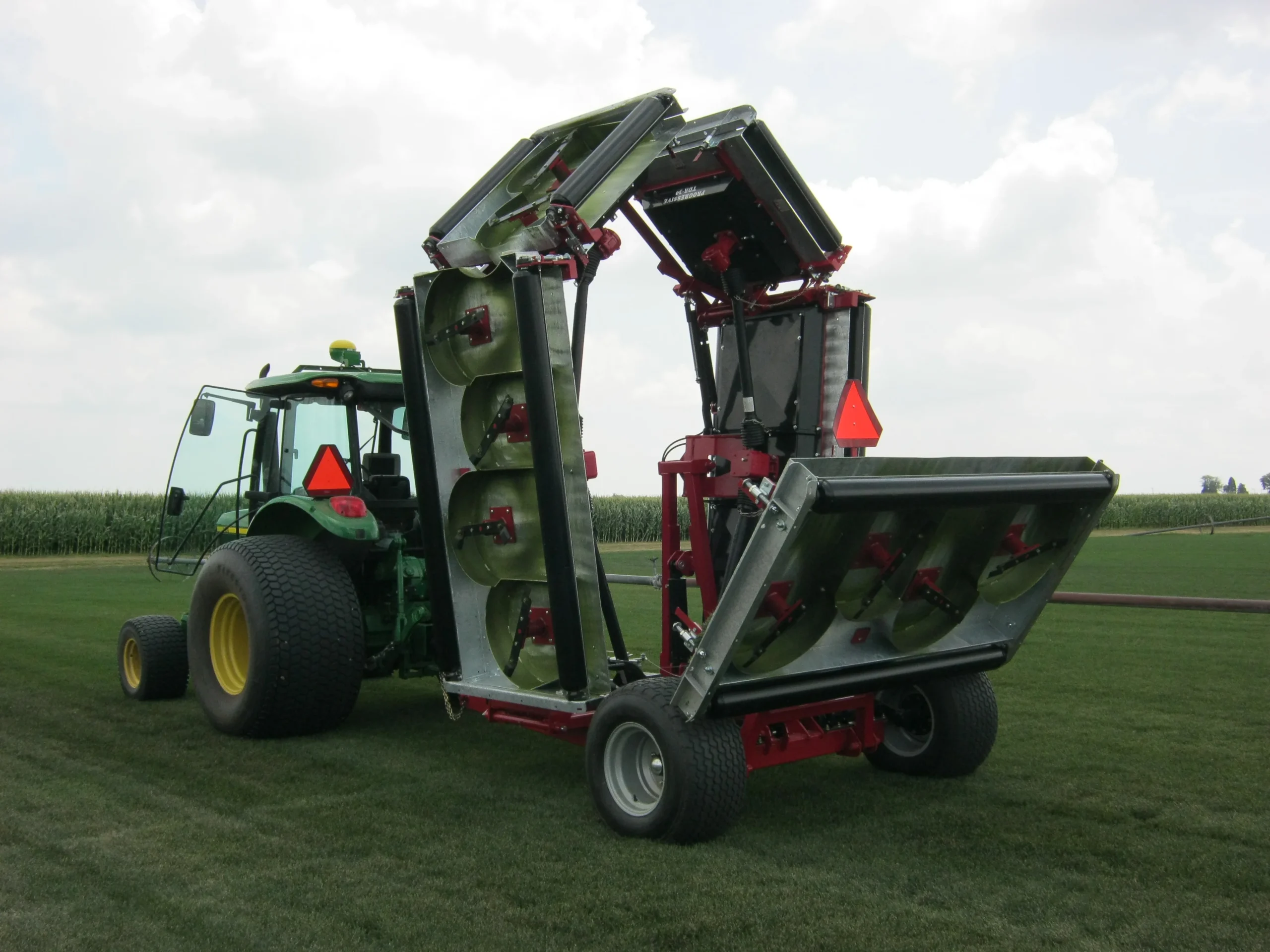

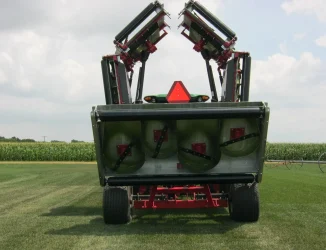

Transport Width	9′
Transport Tires	33×16 LL-16.1 10pr
Transport Height	13′
Weight	7700 lbs
Transport Length	17′

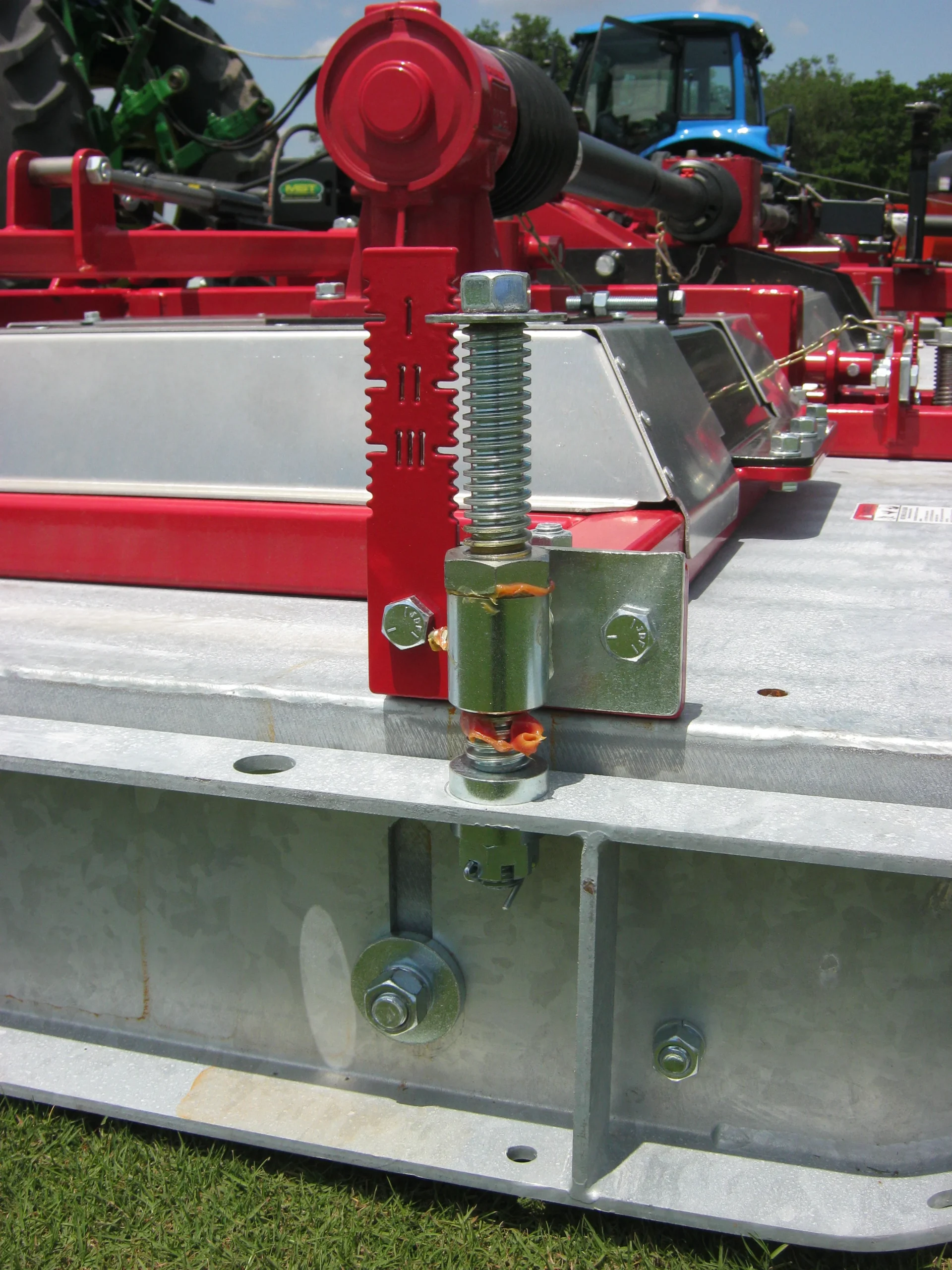

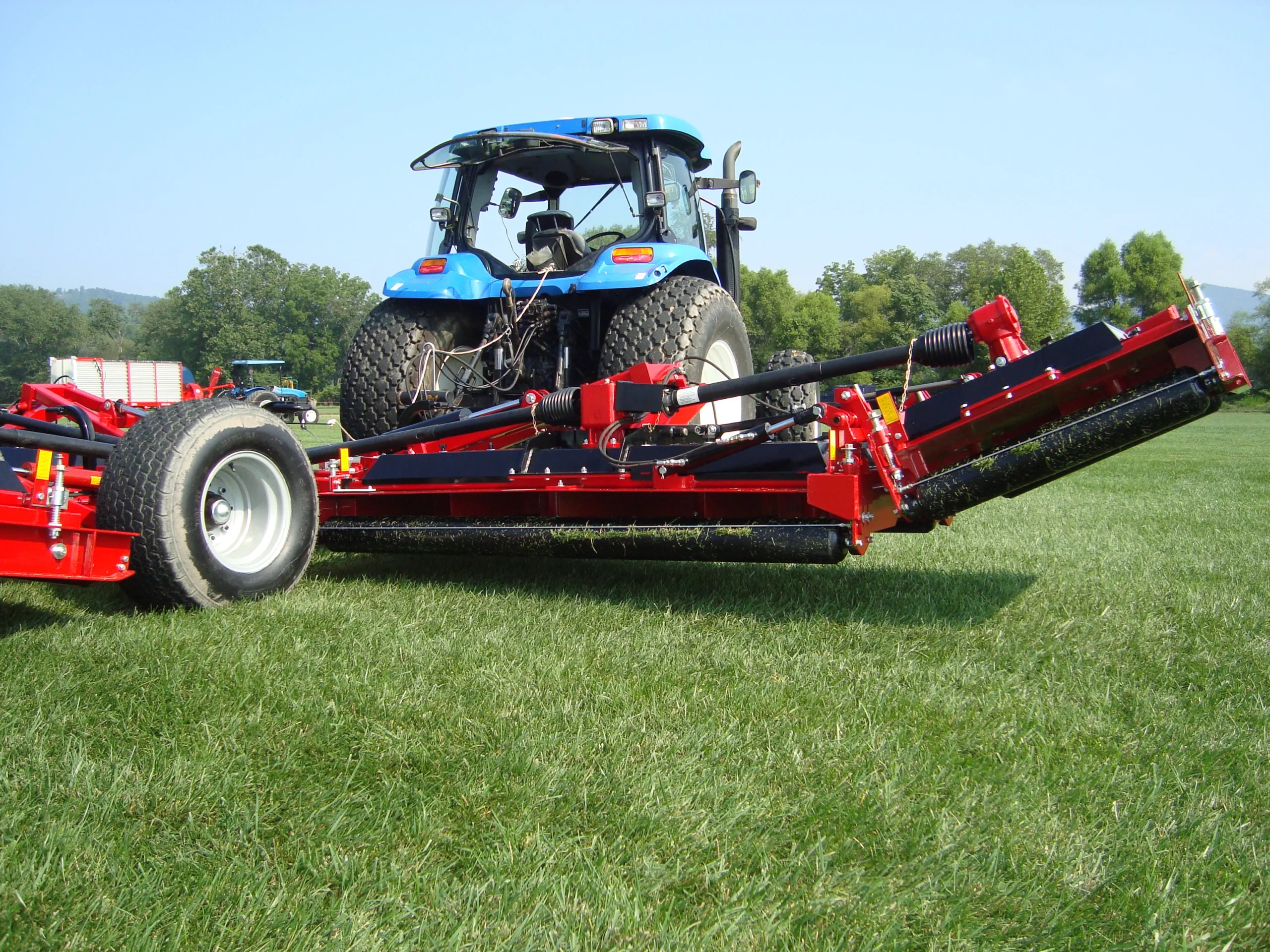

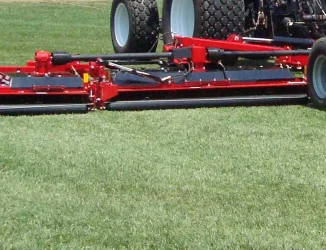

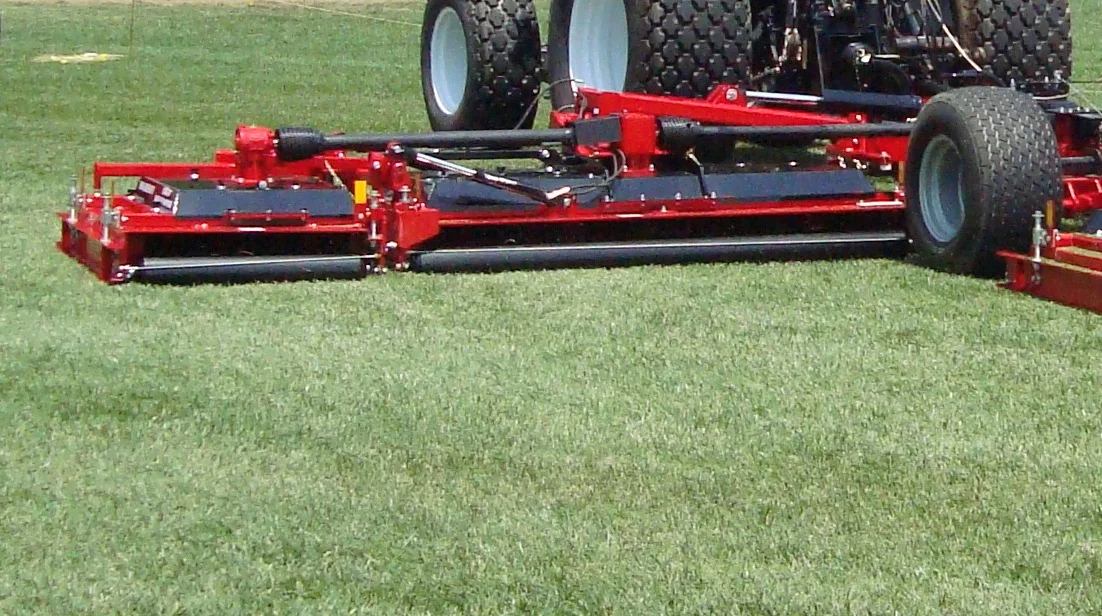

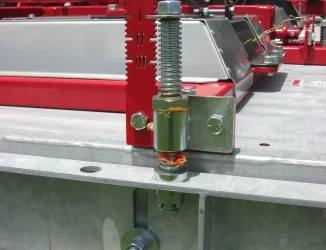

Std. Equipment	Some Assembly Required Unique Flex-deck design – five independently floating decks in a tri-deck configuration Heavy-duty construction, open rear-discharge, easy cutting height adjustment. Heavy-duty 6” dia. Rollers supported by 2 – 1.25” ductile HEX bearings. Maintenance free blade spindles and 100 hr greasing intervals on all PTO shafts. Sixteen 24” blades for a superior cut. Tip speed 18,292 FPM Pro Lift-N-Turn system. Bolt on deck skins, provide ease of deck replacement if necessary 33×16 LL-16.1 10pr transport tire. 7,000# load rated axle Independent suspension on transport wheels for smoother transport
Opt. Equipment	230057 Spare, wide profile transport tire and rim (33×16 LL-16.1 10pr) 607592 High Lift Fixed Blade Kit (8 Pieces per kit – requires two boxes) 607594 Low Lift Fixed Blade Kit (8 pieces per kit – requires two boxes) 526782 PRO-EZ II Blade Bar kit (8 pieces per kit – requires two boxes) 526594 PRO-EZ II Blade Tips Bulk Pack (50 Pieces – W/O hardware) HIGH LIFT 526648 PRO-EZ II Blade Tips Bulk Pack (50 Pieces – W/O hardware) LOW LIFT 526866 PRO-EZ II Blade Bolt Kit (25 Pieces With Hardware) Compatible with the Pro-FORE Blade System (Click for details)

DISCLAIMER

Under our policy of continuous improvement, we reserve the right to change specifications and designs without prior notice. The illustrations shown do not necessarily represent the standard version of product offered by Progressive Turf Equipment Inc.
